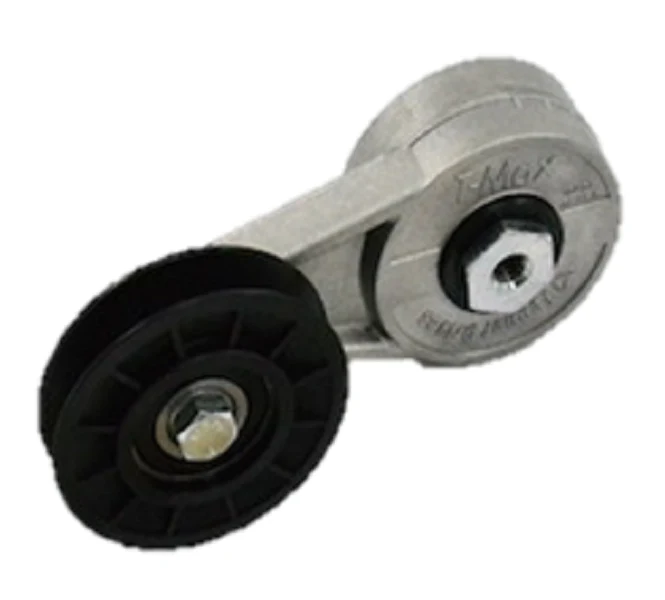

Loren Cook 778531 Belt Tensioner
The Loren Cook 778531 Belt Tensioner is a critical OEM replacement part engineered to maintain precise drive belt tension in commercial HVACR systems. Designed for heavy-duty fan and blower assemblies, this automatic tensioner utilizes a internal spring mechanism to eliminate belt slippage and reduce vibration during startup and continuous operation. As a veteran-grade HVAC drive component, it facilitates optimal power transmission between the motor and the driven sheave, significantly reducing the risk of premature bearing failure and excessive belt wear. The assembly features a robust housing and high-quality sealed bearings, ensuring the mechanical drive system operates at peak efficiency even in demanding industrial environments. Proper installation of this tensioner pulley ensures the belt runs at a cooler internal temperature, which can effectively double the service life of standard V-belts. This Loren Cook fan part is essential for contractors maintaining rooftop units (RTUs), centrifugal blowers, and air handling equipment where consistent airflow and reduced maintenance downtime are top priorities.
- Optimized Drive Efficiency: Maintains constant pressure to prevent parasitic power loss caused by belt slippage.
- Extended Bearing Life: Prevents over-tensioning, which protects both motor and fan shaft bearings from lateral stress.
- Vibration Dampening: Internal spring tension absorbs shock loads during fan startup cycles.
- Simplified Maintenance: Facilitates faster belt swaps by providing a reliable, repeatable tension setting without manual adjustment tools.
Common Questions
How do I verify the correct tension setting on this unit?
After installing the 778531 tensioner, align the marking points on the tensioner housing and support plate. For standard applications, the alignment marks should be spaced approximately 1/2" to 3/4" apart to ensure the internal spring is properly engaged within its operational range.
Can this tensioner be used on both clockwise and counter-clockwise fans?
Yes, but the internal spring and directional arrow must be oriented correctly. If the rotation is reversed, you must flip the internal spring "tail" and snap the directional arrow into the opposite position so it points toward the belt being tensioned.
What are the signs that a belt tensioner needs replacement?
Contractors should look for visible belt glazing, excessive "squealing" during startup that doesn't dissipate, or visible oscillation in the tensioner arm during operation, which indicates a fatigued internal spring or worn pivot bushings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
