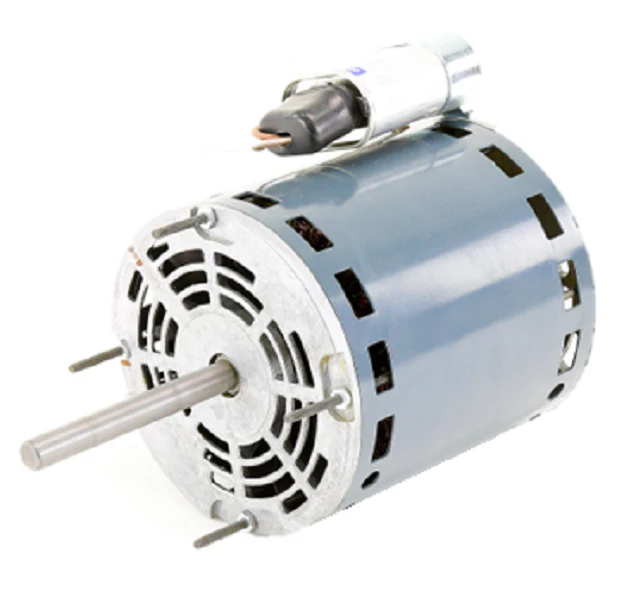

Loren Cook 105105 Motor
Professional contractors and HVAC technicians recognize the Loren Cook 105105 Motor as a critical OEM replacement for maintaining the airflow integrity of commercial ventilation systems. This 3/4 HP ODP motor is specifically engineered for high-demand environments, operating at a reliable 1350 RPM on a standard 115V single-phase power supply. The Open Drip Proof (ODP) enclosure is designed to permit maximum airflow for internal cooling while protecting vital windings from overhead moisture, making it an ideal fit for air handlers, exhaust blowers, and fan coil units in mechanical rooms or attics.
Built on a standard 48-frame motor platform with a 5-5/8 inch diameter, the 105105 features a 1/2-inch diameter shaft measuring 3-1/4 inches in length, ensuring a precise mechanical fit for direct-drive fan wheels. With a CWSE (Clockwise Shaft End) rotation and a full-load amperage rating of approximately 9.0 Amps, this motor delivers the torque required for consistent static pressure performance. The durable steel body and thermal protection protocols ensure this motor handles the thermal stresses of continuous duty without premature failure, providing the exact specifications needed to restore Loren Cook exhaust fan assemblies to factory performance levels.
Key Benefits- OEM Compatibility: Precision-engineered as a direct replacement for Loren Cook Part #105105, ensuring drop-in installation without housing modifications.
- Optimized Cooling: The Open Drip Proof (ODP) design facilitates superior heat dissipation, extending the lifecycle of the internal insulation during extended run times.
- Standardized 48-Frame: Fits common industrial mounting brackets and bands, providing versatility for various blower and fan coil configurations.
- Dependable Torque: Delivering 3/4 HP at a steady 1350 RPM, it maintains rated CFM even under moderate static pressure loads.
What are the physical dimensions of the 105105 motor shaft?
The motor utilizes a 1/2-inch diameter shaft with a length of 3-1/4 inches, compatible with standard Loren Cook hub and bore sizes.
Can this motor be used in high-moisture environments?
While the ODP enclosure protects against vertical drops of moisture, it is intended for indoor or protected applications where it is not exposed to direct driving rain or heavy splashing.
Is the rotation reversible on this unit?
The Loren Cook 105105 is typically specified for CWSE rotation. Technicians should verify the rotation of the existing blower wheel to ensure proper airflow direction before finalizing the installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
