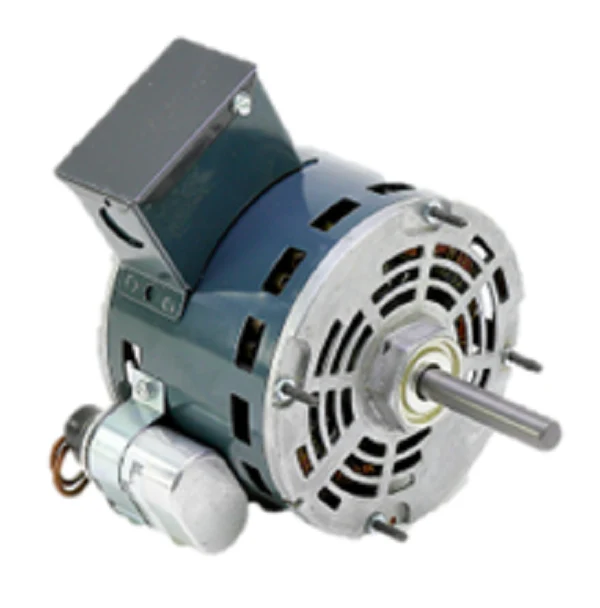

Loren Cook 104307 Motor
The Loren Cook 104307 Motor is a high-performance 1/3HP replacement motor designed for demanding ventilation applications. Operating at a dual-rated 1300/1500 RPM on a 115V single-phase circuit, this OEM exhausted fan motor ensures consistent static pressure performance in Loren Cook centrifugal blowers and energy recovery units. Built with a durable rolled steel frame and an aluminum flange, it provides superior heat dissipation and structural integrity for continuous-duty cycles. As a veteran-preferred HVAC replacement part, it features thermal protection to prevent winding failure during high-amperage draws, typically pulling approximately 4.5 Amps at full load. This direct drive motor is engineered for a NEMA standard fit, making it a drop-in solution for contractors looking to restore system airflow without extensive field modifications.
Key Benefits- Dual-Speed Compatibility: Supports 1300/1500 RPM configurations to match specific fan curve requirements.
- Robust Construction: Features a rolled steel body and aluminum flange for enhanced durability in industrial environments.
- Thermal Overload Protection: Integrated thermally protected circuitry prevents motor burnout from overheating or locked rotor conditions.
- Standardized Mounting: Designed for NEMA mounting compatibility, ensuring a reliable fit for existing Loren Cook fan assemblies.
- Efficient Power Delivery: Optimized for 115V single-phase operation with a high-torque 1/3 HP output.
Is the Loren Cook 104307 compatible with variable frequency drives (VFDs)?
Standard PSC motors like the 104307 are generally designed for fixed-speed operation. For variable speed applications, technicians should verify if the motor is rated for VFD use or consider an EC/Vari-Flow upgrade to prevent winding damage.
What is the shaft size for this replacement motor?
The 104307 model typically features a 1/2-inch shaft diameter, which is the standard for most 1/3 HP Loren Cook centrifugal fan wheels.
Can this motor be used in 230V or 460V applications?
No, this specific SKU is a 115V single-phase motor. Applying higher voltages will result in immediate electrical failure and represents a significant safety hazard.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
