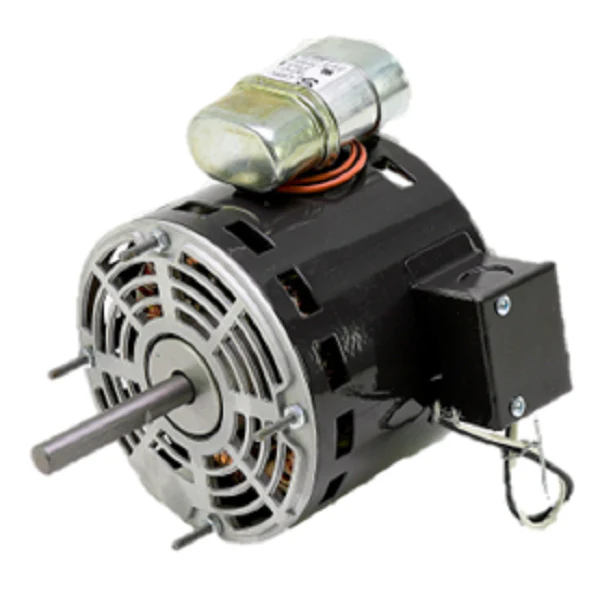

Loren Cook 100172 Motor
The Loren Cook 100172 Motor is a high-performance 1/3 HP replacement motor engineered specifically for direct-drive ventilation systems including the 150-10D AC, ACE, and ACRU series. This single-phase HVAC motor operates at 120V and 60Hz, pulling approximately 4.80 Amps to deliver a consistent 1080 RPM. Designed with an Open Drip Proof (ODP) enclosure, it provides necessary internal air circulation while protecting the windings from falling water and debris in clean-air industrial environments. The Loren Cook OEM motor features a CWSE (Clockwise Shaft End) rotation and a standard 5-5/8 inch diameter frame, making it a drop-in solution for maintaining factory performance in kitchen exhaust and general air-moving applications. Utilizing a durable sleeve bearing system and integrated thermal protection, this motor ensures reliable operation under a maximum 40°C ambient temperature. Contractors can rely on the Loren Cook 100172 for precise mechanical power conversion in blower and fan assemblies without the need for additional pulleys or belts.
Key Benefits- Direct Drive Compatibility: Eliminates the need for belt adjustments and reduces mechanical loss in ACE and ACRU fan models.
- Thermal Protection: Built-in internal protector safeguards the motor windings against overheating during continuous operation.
- Optimized Airflow: The 1080 RPM motor speed is calibrated for specific Loren Cook blower wheels to maintain rated CFM.
- Industrial Construction: Features a 5.6 frame diameter and 1/2-inch shaft for standard mounting in professional ventilation housings.
Is the 100172 motor compatible with variable frequency drives?
Standard ODP 1/3 HP motors are generally designed for constant speed operation. For VFD applications, always verify the motor insulation class and manufacturer specifications to ensure compatibility and prevent premature winding failure.
What does the ODP enclosure rating mean for my installation?
The Open Drip Proof rating indicates that the motor is suitable for indoor or sheltered environments. It allows air to pass through the windings for cooling but prevents liquid from entering at an angle up to 15 degrees from vertical.
Can I reverse the rotation of this motor in the field?
This specific model is typically configured for CWSE rotation. Always check the wiring diagram on the nameplate; if the motor is not lead-reversible, ensure your fan wheel is designed for clockwise rotation to maintain proper airflow.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
