Lochinvar & A.O. Smith 100289519 Label

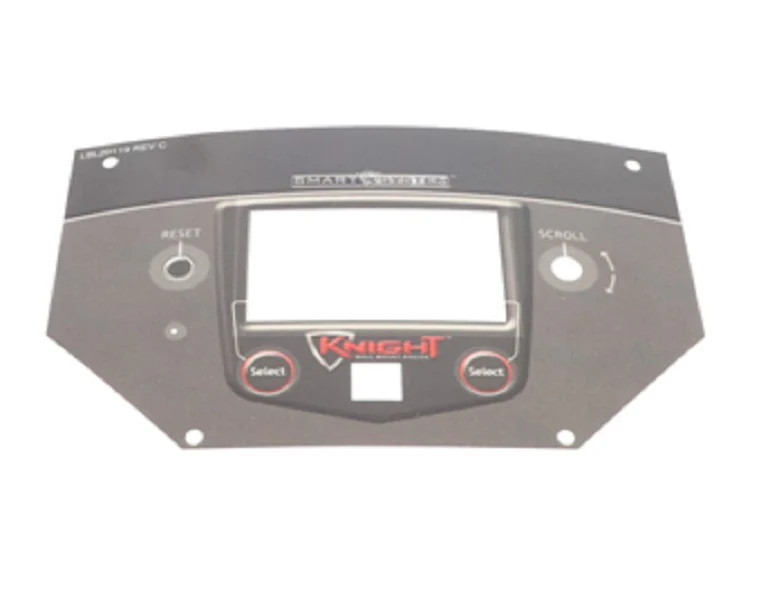

When you are out in the field servicing high-efficiency hydronic systems, having a legible and responsive interface is non-negotiable for precise diagnostics. The Lochinvar & A.O. Smith 100289519 Label is the direct OEM replacement control overlay designed for the Smart System control interface found on Lochinvar Knight and A.O. Smith Vertex series boilers and water heaters. This Control Overlay Label features a professional-grade adhesive backing and precise cutouts for the 2-line LCD display and tactile navigation buttons, ensuring a seamless fit over the existing user interface module. Whether you are dealing with sun-faded graphics or chemical-damaged membranes, this 100289519 display label restores the visibility of critical operating parameters—including modulation rates, setpoints, and error codes—essential for maintaining peak thermal efficiency. As a genuine boiler replacement part, it guarantees correct button registration and protection for the underlying electronic integrated control module, preventing moisture ingress and ensuring the long-term reliability of the Smart System menu navigation during routine maintenance or parameter adjustment.
Key Benefits for the Contractor
- Direct OEM Compatibility: Engineered specifically for the Smart System interface, ensuring 100% accurate alignment with the 16-character LCD and service buttons.
- Durable Protective Barrier: High-grade polycarbonate construction resists common mechanical room contaminants, including oils and cleaning agents.
- Enhanced Legibility: High-contrast labeling allows for quick identification of the service button, reset, and navigation keys during low-light troubleshooting.
- Easy Field Application: Industrial-strength adhesive provides a permanent bond to the bezel, preventing lifting or bubbling in high-temperature environments.
Common Questions
Does this overlay include the electronic display screen?
No, this is the Control Overlay Label only. It is the adhesive-backed graphic membrane that sits on the bezel. If your LCD screen is blank or cracked, you will need to replace the user interface control board.
Will this fit all Lochinvar Knight models?
This overlay is designed for models utilizing the standard 2-line Smart System interface. Always verify your specific model number against the 100289519 part number in the manufacturer's replacement parts list before ordering.
Is the adhesive pre-applied to the back of the label?
Yes, the label features a factory-applied adhesive. For the best bond, ensure the plastic bezel surface is completely cleaned of old adhesive residue and oils before application.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $10.84
-65%$10.84
$3.79Lochinvar & A.O. Smith 100289519 Label
