Lochinvar & A.O. Smith 100208499 Connection Board

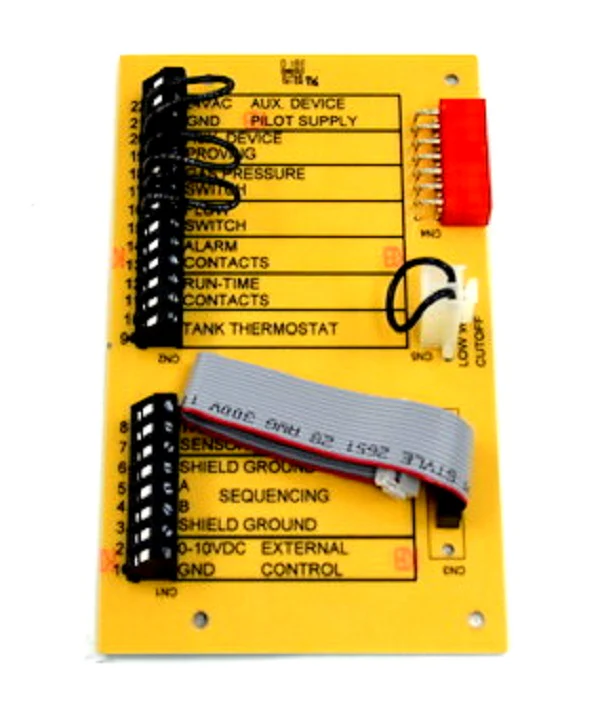

As a specialist in high-efficiency hydration and heating systems, you know that the Lochinvar & A.O. Smith 100208499 Connection Board is the central nervous system for AW150-800 models. This low voltage connection board acts as the critical interface between the CCB circuit board, the thermostat, and field-wired components. When you are dealing with communication faults or erratic signal routing, replacing the OEM connection board is the standard procedure to restore precise HVAC system efficiency. It is engineered to handle temperature setpoints from the user interface and relay instructions to the gas valve and blower prover without the latency or resistance found in generic alternatives. Built with robust circuitry to withstand the demanding thermal environments of commercial water heaters and boilers, this board ensures that your 24 VAC control signals are processed with the accuracy required for high-performance operation.
Key Benefits:
- Direct OEM Compatibility: Specifically designed for Lochinvar AW150-800 series and equivalent A.O. Smith units for seamless "plug-and-play" integration.
- Enhanced Signal Reliability: Eliminates intermittent communication errors between the main control board and external thermostats or sensors.
- High-Efficiency Regulation: Optimizes system performance by ensuring accurate data transmission for energy-efficient combustion and air-to-fuel ratios.
- Durable Technical Build: Features high-grade electrical traces and terminal connections to prevent premature failure from vibration or low-voltage spikes.
Common Questions:
How do I verify if the 100208499 board is faulty?
Technicians should check for 24 VAC at the power terminals. If the main CCB is transmitting but the external components (like the thermostat or gas valve circuit) are not receiving signals, the connection board is likely failing to bridge the communication gap.
Is this board compatible with both natural gas and LP models?
Yes, the 100208499 connection board is a universal electronic component for the AW150-800 chassis, regardless of the fuel source, as it manages the low-voltage control logic rather than the fuel delivery itself.
What causes these connection boards to fail prematurely?
The most common culprits are moisture intrusion, loose wiring crimps causing high resistance, or electrical surges that bypass the transformer. Always inspect the wiring harness for signs of scorching before installing the new board.
