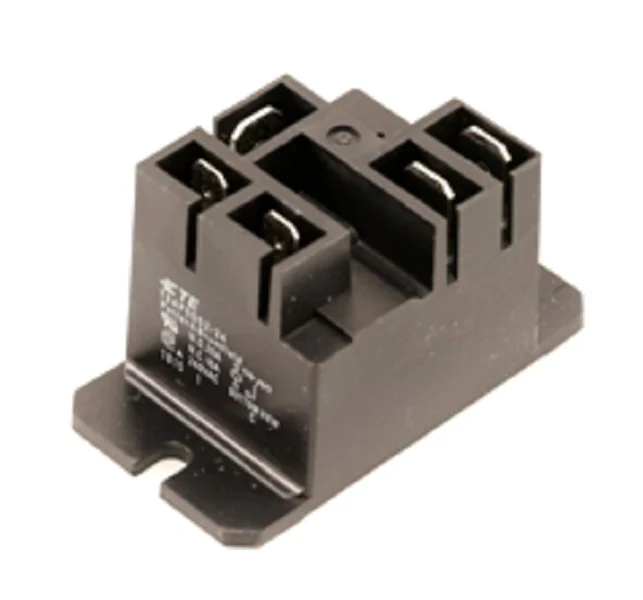

Lochinvar & A.O. Smith 100208491 Mount
When you're out in the field, reliable switching is non-negotiable. The Lochinvar & A.O. Smith 100208491 is a 24VDC Relay Panel Mount designed specifically for heavy-duty HVACR applications. This OEM replacement part is the current standard for the legacy RLY2052 and RLY2052K components, ensuring a drop-in installation without the need for field modifications. Operating on 24 volt DC, this relay provides precise control for pump circuits, fan coils, and auxiliary heating logic within Lochinvar and A.O. Smith systems. Its robust panel-mounted design allows for space-efficient integration directly onto the internal PCB bracket or sheet metal chassis of your boiler or water heater. By using a genuine Lochinvar relay, you maintain the engineered electrical safety standards required for high-performance commercial and residential equipment, providing stable switching for low-voltage control systems and protecting sensitive downstream electronics from voltage irregularities.
Key Benefits- Direct Cross-Reference: Engineered as the official replacement for part numbers RLY2052 and RLY2052K, guaranteeing fitment and electrical compatibility.
- Broad Compatibility: Validated for use across multiple Lochinvar series, including CBL0497, CBL0647, and CBL0747 boiler models.
- Industrial Build Quality: Features a robust construction capable of handling high-cycle operations in demanding commercial environments.
- Standardized Installation: Utilizes 3/16-inch quick-connect terminals for secondary coil connections and standard screw slots for easy panel mounting.
- Voltage Stability: Specifically rated for 24VDC operation, ensuring reliable performance within standard HVACR control loops.
Is this relay a direct swap for the older RLY2052?
Yes, the 100208491 is the manufacturer-designated replacement for the obsolete RLY2052 and RLY2052K series, keeping the same footprint and 24VDC requirements.
Can I use this relay for both pump and fan control?
This panel mount relay is commonly utilized for pump switching and auxiliary fan coil logic, provided the circuit demands match the 24VDC coil specifications.
What mounting hardware is required?
The unit features pre-punched mounting slots designed for standard sheet metal screws, allowing it to be secured directly to the internal relay panel mount bracket found in most Lochinvar units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
