Lochinvar & A.O. Smith 100208475 Connector

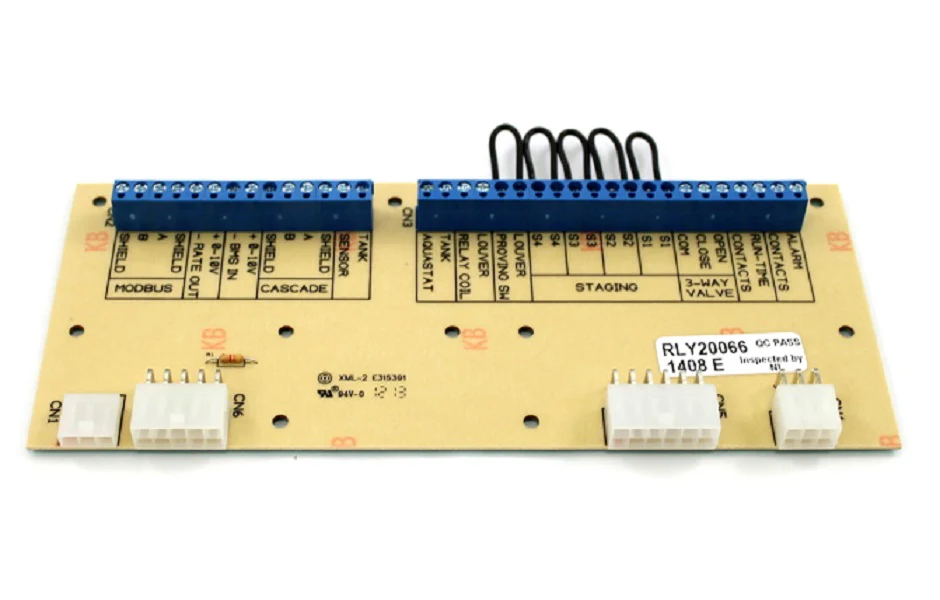

When you're dealing with a communication fault or a total system lockout on a high-efficiency unit, the Lochinvar & A.O. Smith 100208475 Board Connector is a critical point of failure to inspect. This genuine OEM connection board, which replaces legacy part numbers RLY20066, RLY20066K, and 100167582, serves as the primary interface between the main control module and peripheral system sensors. Engineered for the Lochinvar Crest (models CHN and CHL) and A.O. Smith boiler series, this HVAC control board connector ensures stable low-voltage signaling that is essential for maintaining modulation accuracy and safety circuit integrity. In the field, we see these particularly in commercial water heater and hydronic boiler applications where thermal cycling can stress standard connectors. Utilizing a high-grade printed circuit board substrate, the 100208475 provides the electrical reliability needed to prevent intermittent boiler error codes and costly diagnostic callbacks. It is a direct-fit component designed for rapid installation into existing control housings without field modification.
Key Benefits:- OEM Compatibility: Precision-engineered for a seamless fit in Lochinvar and A.O. Smith boilers, ensuring full communication with the system logic.
- Signal Integrity: Provides high-stability electrical pathways to eliminate data noise between the boiler control board and peripheral components.
- Industrial Build: Designed to withstand the high-temperature environments common in commercial mechanical rooms.
- Direct Supercession: Lawfully replaces obsolete parts like the Lochinvar 100167582, simplifying inventory and procurement for contractors.
- Which models is this connector compatible with? It is primarily used in Lochinvar Crest (models 0402 through 2072) and various A.O. Smith water heater control assemblies.
- Can this board fix communication error codes? Yes, if the diagnostic trace leads to a faulty interface or physical damage at the pin connectors, this board restores the necessary bridge for system data.
- Is this a genuine manufacturer part? Yes, this is a factory-authorized Lochinvar 100208475 component, preserving the original equipment's performance specifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
