Lochinvar & A.O. Smith 100167793 Control

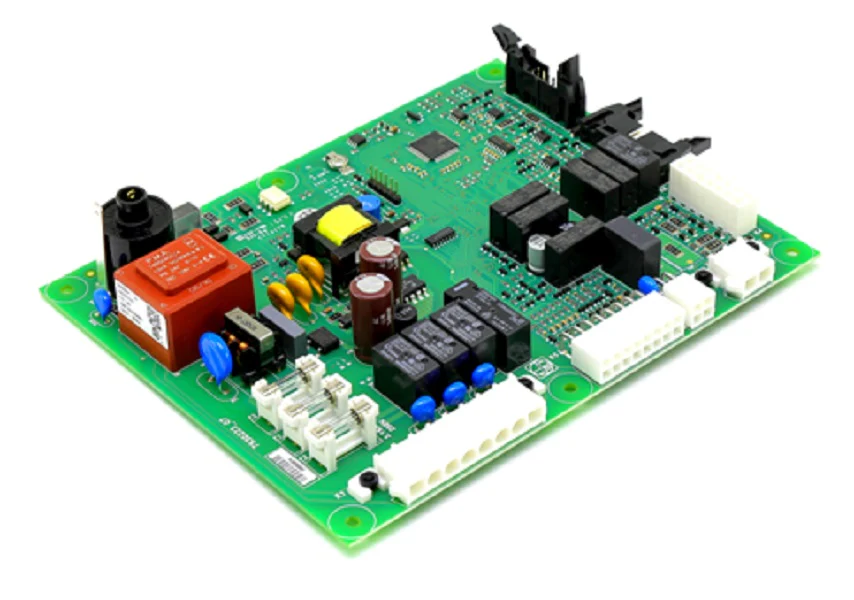

The Lochinvar & A.O. Smith 100167793 Integrated Control is a critical OEM replacement part designed for high-efficiency gas water heaters and boilers. This microprocessor-based integrated control board acts as the central command for the unit, regulating ignition sequences, flame monitoring, and temperature modulation to ensure peak thermal efficiency. Specifically engineered for the Lochinvar KBN400 series with serial numbers prior to H10, this board integrates seamlessly with existing wire harnesses and sensors to maintain system safety and operational reliability. By precisely managing the combustion air blower and gas valve timing, the 100167793 helps minimize cycling wear and optimizes energy consumption across residential and light commercial applications. As a veteran technician knows, using a genuine Lochinvar 100167793 is essential for maintaining the factory-calibrated combustion parameters and safety lockouts required for these high-performance systems. This HVAC control module features diagnostic capabilities that assist in rapid troubleshooting by providing clear fault history and real-time status indicators for components like the igniter and blower motor.
Key Benefits- System Compatibility: Direct OEM fit for Lochinvar KBN400 and select A.O. Smith high-efficiency models, ensuring perfect communication with the UIM and internal sensors.
- Advanced Modulation: Operates in conjunction with variable frequency drives (VFD) to provide precise pulse width modulation (PWM) signals for blower speed control.
- Reliable Safety Diagnostics: Features an onboard 9-event fault history and real-time error code reporting to simplify field troubleshooting and reduce downtime.
- Optimized Combustion: Regulates the ignition and heating cycles to maintain a consistent 120V power supply to critical components, protecting the heat exchanger from thermal stress.
Is this control board compatible with newer H10 serial number units?
No, the 100167793 is specifically designated for units with serial numbers prior to H10. For units manufactured after this series, a different part number is required to match the updated hardware architecture.
What does it mean if the board shows an 'E02' or 'E10' code after installation?
These codes typically indicate fan speed or air switch faults. Verify all wiring harness connections and ensure the PWM signal from the new integrated control is reaching the blower assembly correctly.
Does this board require specialized tools for installation?
Yes, installation should be performed by a licensed contractor. Technicians should have a digital multimeter and manometer on hand to verify the 120 VAC power supply and calibrate gas pressure after swapping the control.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $751.25
-65%$751.25
$262.94Lochinvar & A.O. Smith 100167793 Control
