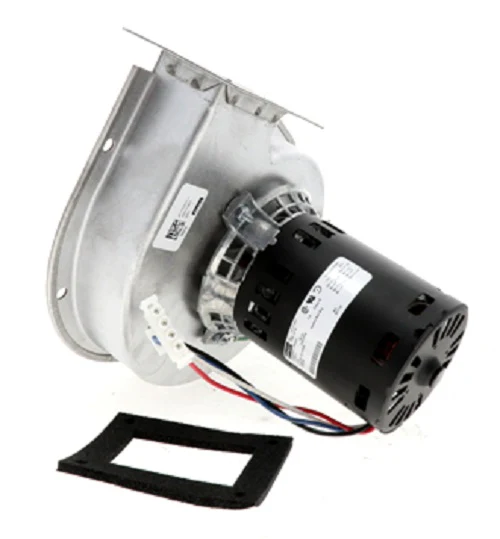

Lochinvar & A.O. Smith 100145012 Inducer Motor
The Lochinvar & A.O. Smith 100145012 is a high-performance 115/230V 3300RPM inducer motor designed for precise combustion air management in specialized boiler and heating systems. As a critical draft inducer assembly component, this motor facilitates optimal airflow through the heat exchanger, ensuring stable combustion cycles and preventing the buildup of flue gases. This unit is a direct OEM replacement motor for several Lochinvar and A.O. Smith models, including those requiring the FAN3041 fan assembly. Built with a 1/12 HP rating and foot mounting configuration, it supports dual-voltage field wiring to match existing control board requirements. For technicians troubleshooting ignition failures or pressure switch errors, replacing a seized or vibrating motor with this draft inducer motor 100145012 restores factory-spec static pressure. Its 3300 RPM operational speed is calibrated specifically for high-altitude heating systems and pool heaters where consistent venting is mandatory for safe operation.
Key Benefits for Technicians:
- Dual-Voltage Versatility: Seamlessly switch between 115V and 230V configurations to match site-specific power availability.
- Precision Balancing: The 3300 RPM motor is factory-balanced to minimize harmonic vibration and mechanical wear in the vent blower housing.
- Direct OEM Fitment: Eliminates field modifications; replaces obsolete part number FAN3041 for rapid HVAC motor replacement.
- Enhanced Durability: Engineered for continuous duty in high-heat environments common in commercial and residential boiler rooms.
Common Questions:
Does this motor include the fan wheel and housing?
This part number typically refers to the motor itself. When performing a Lochinvar inducer assembly repair, verify if your existing blower wheel and housing are intact or if a complete assembly is required for your specific model.
Can I use the 100145012 to replace a motor with a different RPM rating?
No. For heating systems, the 3300 RPM motor speed is critical for maintaining the correct pressure switch differential. Installing a motor with different specs will lead to safety lockouts or incomplete combustion.
What are the wiring requirements for the dual-voltage setup?
Check the lead wire diagram on the motor plate. Field wiring must be configured correctly for either 115V or 230V to avoid winding damage during startup.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
