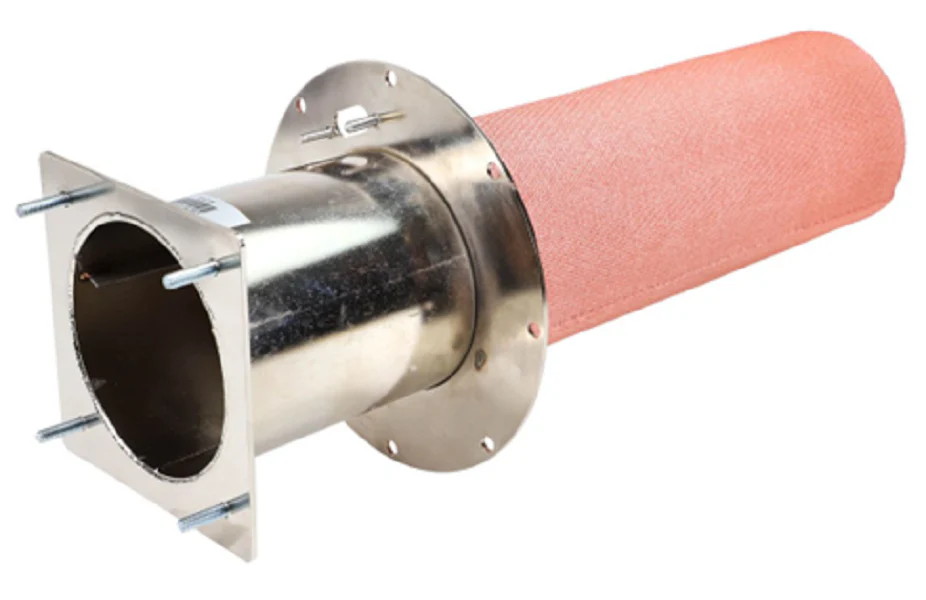

Lochinvar & A.O. Smith 100135330 Burner Assembly
The Lochinvar & A.O. Smith 100135330 Burner Assembly is a precision-engineered OEM replacement burner specifically designed for high-output commercial hydronic systems. This PF1501 burner assembly is the factory-authorized component for Lochinvar Power-Fin series boilers, including the PF1501 heating boiler and PB1501 hot water supply models. For technicians troubleshooting irregular combustion or flame failure in large-scale Lochinvar boiler parts kits, this assembly ensures the combustion chamber maintains optimal thermal efficiency and correct gas-to-air ratios. Constructed to withstand the high temperatures of 1.5 million BTU inputs, this 100135330 burner eliminates compatibility issues common with aftermarket universal parts, supporting the structural integrity of the heat exchanger. By replacing a degraded burner with this genuine A.O. Smith burner assembly, you restore factory-spec laminar flame stability and reduce pressurized combustion resonance within the flue system, ensuring the appliance meets its original emissions and performance ratings during heavy cycling.
Key Technical Benefits:
- Direct OEM Fitment: Eliminates field modifications, ensuring Lochinvar Power-Fin PF1501 combustion alignment is maintained.
- Optimized Thermal Distribution: Engineered to provide uniform flame patterns, preventing hotspots and extending the life of the heat exchanger tubes.
- High-Grade Radial Design: Manufactured with materials capable of handling the high-static pressure requirements of Power-Fin boiler blower systems.
- Operational Consistency: Precision-drilled ports maintain calibrated gas flow for stable HVAC burner assembly ignition.
Common Contractor Questions:
- Is this assembly compatible with older Lochinvar Power-Fin models? This part is specifically sized for 1500 series units (PF1501 and PB1501); always verify your cabinet serial number to ensure correct generation compatibility.
- Does this include the igniter and flame sensor? This configuration focuses on the main burner assembly; it is standard practice to inspect and potentially replace the 100135330 combustion gasket during installation.
- Can this be used for natural gas and propane conversions? This manifold assembly is built to factory specifications; ensure your gas orifices and air shutters are adjusted per the rating plate requirements for your specific fuel type.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
