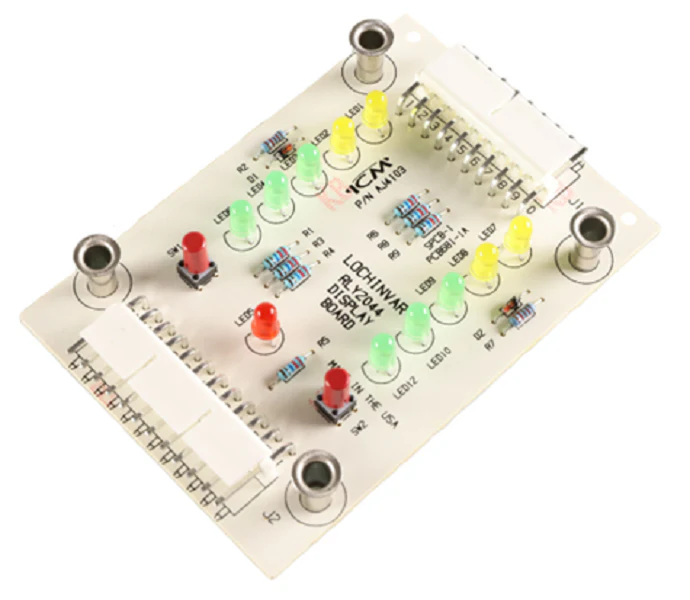

Lochinvar & A.O. Smith 100112839 Display Board
The Lochinvar & A.O. Smith 100112839 Display Board is a critical HVAC control interface designed for precise system administration and real-time monitoring of commercial and industrial water heaters and boilers. As a genuine OEM replacement part, this UIM display module ensures seamless integration with existing control logic, providing technicians with a high-resolution graphical front-end for adjusting parameters and reviewing system statistics. This digital display assembly is engineered to withstand the rigorous demands of mechanical rooms, facilitating fast diagnostics by surfacing live temperature data, operational status, and active error codes directly on the unit.
When performing a display board replacement, this component restores full functionality to the user interface, allowing for critical configuration of boiler control settings and water heater setpoints. The 100112839 is built for HVAC system compatibility within the Lochinvar and A.O. Smith ecosystems, ensuring that communication protocols between the main power board and the interface remain stable. Its low-profile, lightweight design and plug-and-play wiring connections minimize downtime during field service, making it an essential stock item for contractors maintaining high-efficiency thermal systems.
Key Benefits- Enhanced Diagnostics: Provides immediate access to HVAC error codes and system status for rapid troubleshooting.
- Precision Control: Enables accurate adjustment of temperature and configuration settings to maintain peak system efficiency.
- OEM Reliability: Guaranteed genuine Lochinvar part ensures exact fit and long-term functional stability.
- User-Friendly Interface: Offers a clear graphical layout, reducing the learning curve for facility managers and service techs.
- Is this board compatible with my specific A.O. Smith model? This board is widely used across various commercial water heater series; verify your specific model number against the 100112839 technical specifications for confirmed compatibility.
- Can I use this to clear "AC Reversed" or "Ignition Failure" codes? Yes, this interface allows you to view and reset faults once the underlying mechanical issue has been resolved.
- What causes a blank screen on the display? A blank screen typically indicates a power supply issue from the main control board or a short in the wiring harness; always check input voltage before replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
