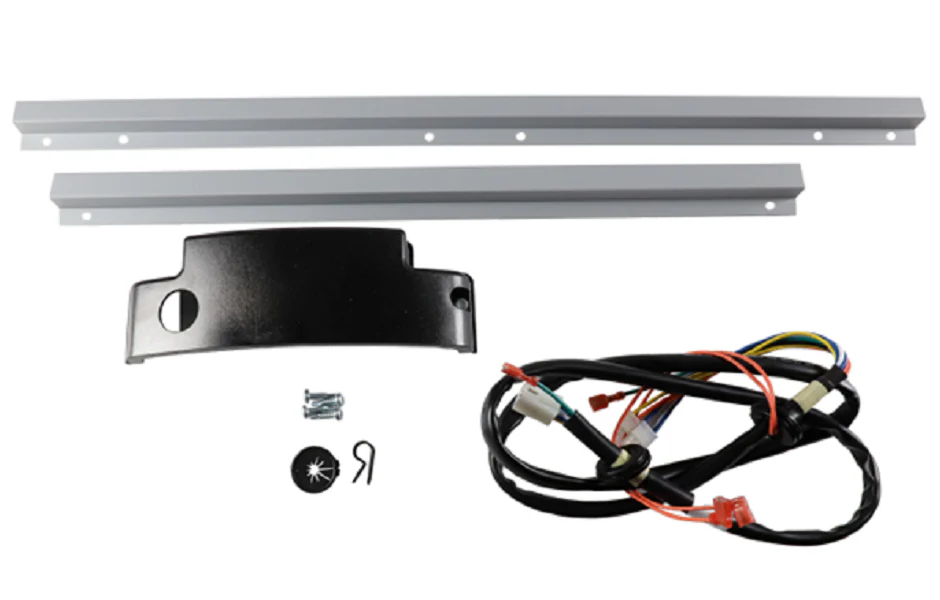

Lochinvar & A.O. Smith 100112697 Wiring Harness
The Lochinvar & A.O. Smith 100112697 Wiring Harness is a critical OEM component designed for high-efficiency commercial boilers and gas water heaters. This specialized blower wiring harness features a 61.5-inch lead and integrated channels, ensuring precise signal transmission between the main control module and the combustion blower assembly. As a genuine HVAC replacement part, it is engineered to withstand the thermal stresses of continuous burner operation, preventing communication failures or erratic flame signals often caused by degraded insulation or loose pin connections in sub-standard aftermarket alternatives.
For technicians troubleshooting ignition lockout or blower speed errors, this factory-original wire harness provides a direct-fit solution that maintains the integrity of the unit's safety circuit. The heavy-duty connectors are keyed for error-free installation, facilitating seamless integration with the integrated control board. Utilizing this OEM boiler harness ensures that voltage parameters remain within the manufacturer's specified range, protecting sensitive low-voltage components from impedance issues that can lead to premature board failure.
Key Benefits- Precision Lead Length: Features a 61.5-inch harness with protective channels for secure routing around high-temperature internal components.
- OEM Connector Integrity: Heavy-duty, corrosion-resistant pins ensure a stable 24V or line-voltage connection to the blower motor.
- Application Compatibility: Specifically engineered for compatibility with select Lochinvar and A.O. Smith high-efficiency heating systems.
- Interference Protection: High-grade insulation prevents electromagnetic interference (EMI) from disrupting critical sensor data sent to the control board.
How do I verify if the 100112697 harness is faulty?
Use a multimeter to check for continuity across each lead while gently flexing the harness. Constant "open" readings or intermittent resistance spikes indicate internal wire fractures or pin tension loss.
Can this harness be used to resolve blower communication error codes?
Yes. Fault codes related to blower feedback (PWM) or air pressure switch failure often stem from a compromised wiring harness rather than the actual motor or switch.
Is this a universal HVAC harness?
No. This is a model-specific OEM part. Standardized harnesses lack the necessary pin configurations and lead lengths required for these specific boiler architectures.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
