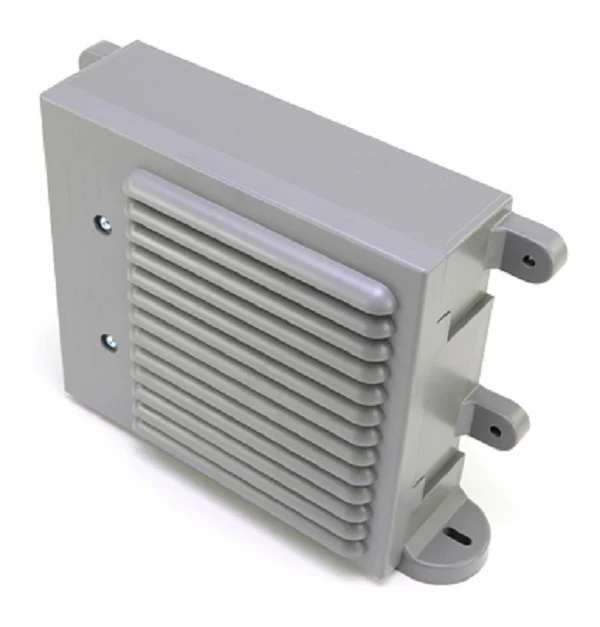

Lochinvar & A.O. Smith 100112614 Controller
The Lochinvar & A.O. Smith 100112614 Combined Controller is the primary electronic control board managing combustion, temperature regulation, and safety protocols for BTH 400A Series 104 commercial water heaters. As a critical OEM replacement part, this integrated controller replaces legacy part number 9008219005, ensuring seamless BTH 400-104 compatibility. Designed specifically for natural gas water heaters, it monitors internal flow, pressure, and thermal variables to maintain high-efficiency operation while preventing overheating and flame failures. This HVACR control module synchronizes the inducer motor, gas valve, and ignition sequence to ensure reliable cycles in demanding commercial environments. For veteran technicians, this board provides the necessary interface for hydronic system troubleshooting, featuring precise diagnostic capabilities to resolve low air conditions or ignition lockout. Proper installation ensures optimized fuel-to-air ratios and consistent BTU output, protecting the integrity of the heat exchanger and overall system longevity in large-scale applications.
Key Benefits- Precise Commercial Regulation: Specifically calibrated for high-output BTH 400A Series 104 units to maintain tight temperature differentials.
- OEM-Grade Reliability: Direct Lochinvar 100112614 factory replacement ensures perfect fitment and eliminates the risks associated with generic boards.
- Advanced Diagnostics: Facilitates rapid identification of system faults, including pressure switch issues and inducer motor failures.
- Optimized Efficiency: Dynamically adjusts system parameters to maximize energy performance and prevent thermal stress.
- Is this controller compatible with LP units? No, this specific model is engineered for natural gas (NG) configurations only. Verify your fuel source before selection.
- Does this board replace the 9008219005? Yes, the 100112614 is the current manufacturer-approved replacement for the 9008219005 combined controller.
- What units does this fit? It is designed for the A.O. Smith Cyclone BTH 400A (Series 104) and corresponding Lochinvar commercial models.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
