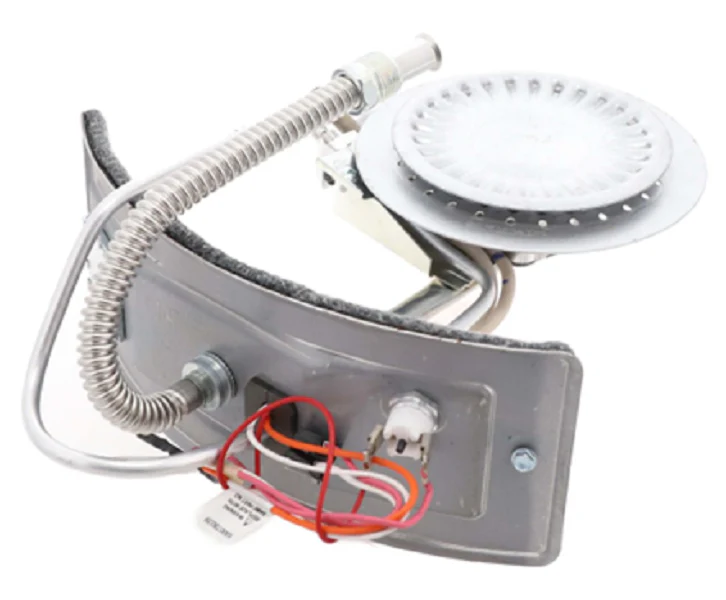

Lochinvar & A.O. Smith 100112276 Burner Assembly
The Lochinvar & A.O. Smith 100112276 Burner Assembly is a precision-engineered 14-inch natural gas final burner component designed for high-efficiency water heating systems. This OEM replacement burner features a factory-calibrated #39 burner orifice, ensuring the correct BTU input and consistent flame pattern required for optimal thermal transfer. As a full assembly, this kit includes the pilot tube, heavy-duty burner door gasket, thermopile, and thermal switch, providing a complete solution for restoring atmospheric burner performance. Integrated components like the manifold tube and manifold component block are built to withstand high-temperature cycling without warping. This assembly is specifically engineered for compatibility with Lochinvar GCV 30 and A.O. Smith GS6 30 YORT series units, among other residential and light commercial models. Utilizing a genuine 100112276 burner kit ensures that the combustion system maintains its original safety ratings and operational efficiency, preventing the common ignition delays or soot accumulation often seen with generic alternatives.
Key Benefits- Precise Gas Delivery: Features a factory-installed #39 orifice for exact Natural Gas (NG) fuel-to-air ratios.
- Comprehensive Kit: Includes the burner head, pilot assembly, thermopile, and thermal switch for a total system overhaul.
- Direct Fit Compatibility: Specifically designed for 30-gallon gas water heaters including GCV, GCVL, XCV, and XVR series.
- Industrial-Grade Gasket: High-temp burner door gasket ensures a combustion-tight seal to prevent flue gas leakage.
- Reliable Ignition: Features a manifold tube and pilot assembly built for consistent light-off in demanding cycles.
Is the 100112276 compatible with Propane (LP) units?
No, this specific assembly is calibrated with a #39 orifice intended exclusively for Natural Gas burner applications. Conversion to LP requires a different orifice size and regulator adjustment.
What models does this burner assembly fit?
This 14-inch assembly is the correct OEM replacement for various 30-gallon models, including the A.O. Smith GS6 30 YORT, GCVL 30, and GSX 30 series water heaters.
Does this assembly include the manifold door?
Yes, the 100112276 is a "Final Burner Assembly," which includes the burner door, manifold components, and the necessary gaskets for a complete installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
