Lochinvar & A.O. Smith 100109617 Tubing

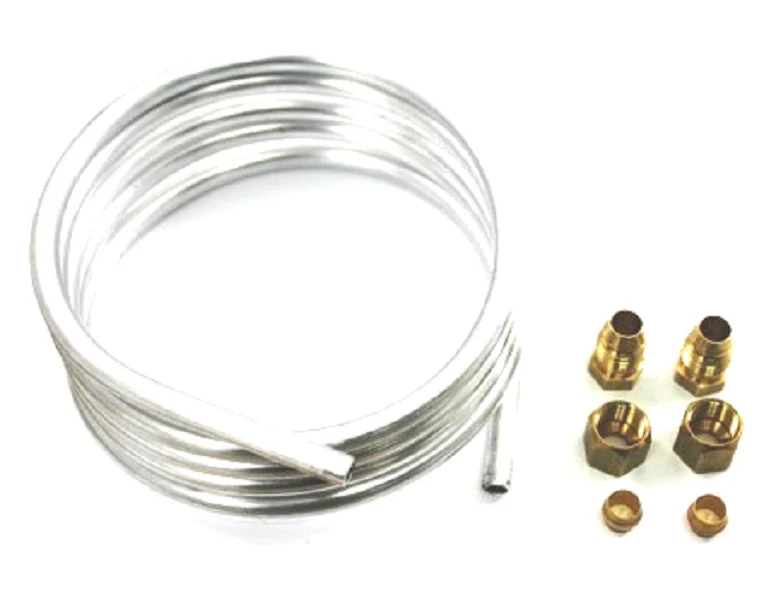

The Lochinvar and A.O. Smith 100109617 is a precision-engineered 60-inch pilot tubing assembly designed for high-performance commercial and residential water heaters. This 1/4-inch OD aluminum tubing provides the necessary durability and flexibility for routing through compact burner compartments without risking structural kinks or flow restrictions. Rated for high-temperature environments, this OEM replacement pilot line ensures a consistent fuel supply to the pilot light assembly, maintaining efficient ignition cycles and system reliability. The assembly comes pre-equipped with the necessary pilot tubing fittings for a secure, leak-proof connection to the gas valve and pilot burner. Accurate gas water heater repair often requires this specific 100109617 component to meet original equipment manufacturer tolerances. Field technicians prioritize this burnished aluminum tubing for its corrosion resistance and ease of flare adjustment during field installation, ensuring the combustion system operates at peak thermal efficiency without nuisance lockouts.
Key Technical Benefits
- Universal Compatibility: Engineered as a direct replacement for various Lochinvar and A.O. Smith models requiring a 60-inch reach.
- Durable Construction: High-grade aluminum 1/4-inch pilot line resists oxidation and withstands constant heat exposure within the combustion chamber.
- Installation Ready: Includes integrated fittings to streamline the pilot burner assembly repair process and reduce tool-time on site.
- Optimized Gas Flow: Smooth internal bore dimensions ensure steady pressure delivery for consistent pilot flame stability.
Common Installation Questions
Is this tubing compatible with both Natural Gas and Propane systems?
Yes, the 100109617 pilot tubing is rated for use in both NG and LP applications, provided the correct orifice is seated at the pilot burner.
Can I trim the 60-inch length if it is too long for my unit?
While technically possible with a standard tubing cutter and flaring tool, it is recommended to loop the excess replacement pilot tubing carefully to avoid unnecessary modifications that could affect the fitting seal.
Does this include the compression nut and sleeve?
This assembly typically includes the 1/4-inch compression fittings required for standard attachment to the gas control valve.
