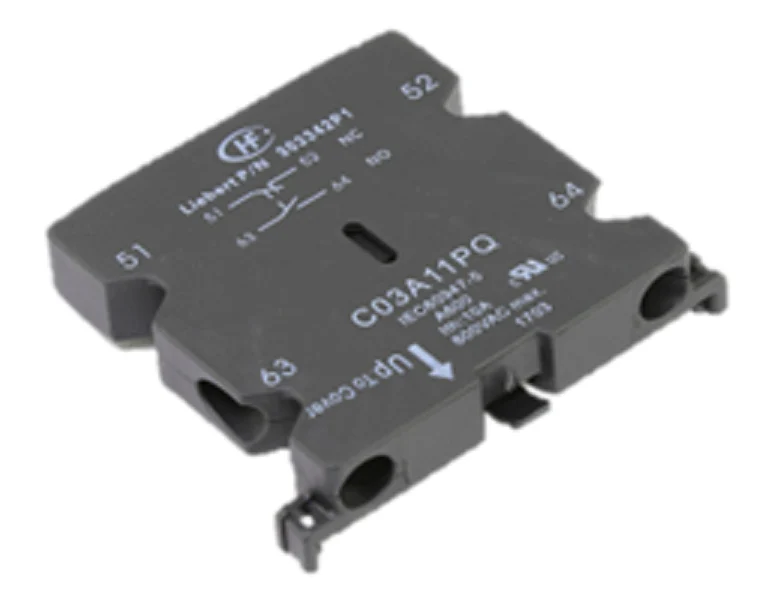

Liebert 303342P1S Contact
The Liebert 303342P1S Contact is a heavy-duty auxiliary switch designed for seamless integration with Liebert PDX and PCW precision cooling systems. Engaged directly with the main contactor, this normally open and normally closed (N/O, N/C) aux contact provides critical feedback to the building management system or local controller, ensuring accurate status monitoring of high-demand HVACR components. Engineered for the rigorous 7x24 duty cycles of data center environments, the 303342P1S supports reliable signal switching up to 600V AC, making it a staple for technicians maintaining Liebert Mini-Mate and large-scale precision cooling units.
For contractors troubleshooting compressor or fan motor engagement, the Liebert 303342P1S offers a standard Homer configuration that simplifies field replacement. This auxiliary contactor switch eliminates signal drift and ensures positive mechanical interlocking. Whether you are performing preventative maintenance on a ceiling-mounted Mini-Mate2 or a floor-mount CRAC unit, using genuine Liebert HVAC parts guarantees consistent electrical contactor timing and prevents unnecessary control board alarms caused by mismatched impedance or mechanical wear.
Key Benefits- Precise Signal Feedback: Dual-pole N/O and N/C configuration allows for simultaneous monitoring and safety interlocking.
- Industrial Voltage Rating: Built to handle up to 600V AC, suitable for commercial power distribution in precision cooling.
- System Compatibility: Explicitly designed for Liebert PDX/PCW series units, ensuring perfect fitment without modifications.
- Homer Configuration: Standardized mounting profile for rapid field replacement during critical downtime.
- Enhanced Reliability: Heavy-duty construction maintains electrical integrity over thousands of switching cycles in data center HVAC applications.
Is the Liebert 303342P1S compatible with non-Liebert contactors?
This auxiliary contact is specifically engineered for use with Liebert brand contactors typically found in PDX and PCW units. Mechanical fitment is proprietary and should be verified against your specific contactor frame size.
Can this switch be used for both low-voltage control and high-voltage monitoring?
Yes, while rated for up to 600V AC, it is frequently used to relay 24V control signals to monitoring cards or building management systems (BMS) to confirm contactor engagement.
What is the primary cause of failure in 303342P1S auxiliary contacts?
Field data suggests that carbon tracking or mechanical binding due to environmental contaminants are the most common issues. Replacing the auxiliary contact when replacing a pitted main contactor is recommended to ensure system feedback accuracy.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
