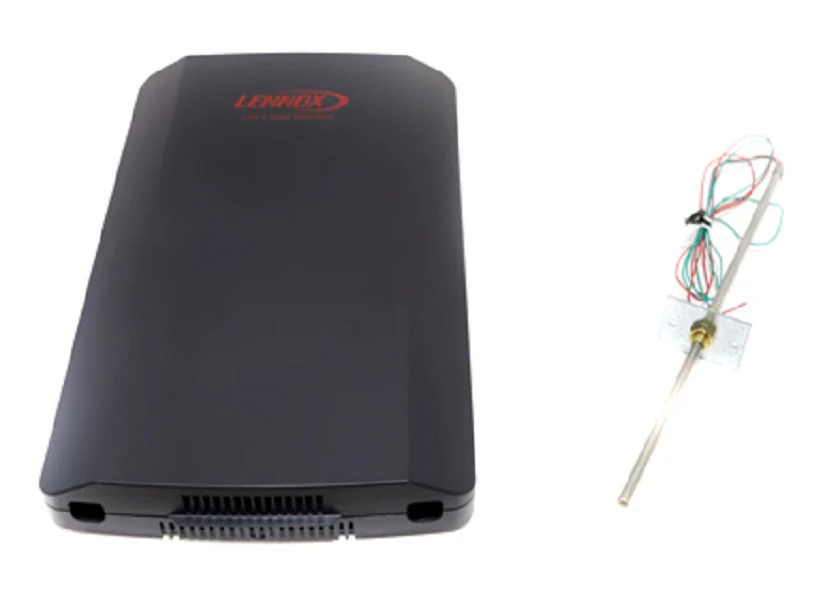

Lennox Y7768 Control Panel
The Lennox Y7768 Harmony III Zone Control Panel is a critical component for managing multi-zone HVAC systems that utilize variable speed blowers and modulating gas valves. Engineered for LZP-4 zone control applications, this 3amp control board coordinates indoor and outdoor units to maintain precise temperature setpoints across four independent zones. It interfaces seamlessly with Lennox signature series equipment, utilizing a discharge air temperature sensor to prevent coil freeze-up or heat exchanger overheating. The board features clearly labeled terminal blocks for 24V wiring, simplifying the integration of zone dampers and multi-stage thermostats. By monitoring system static pressure and adjusting airflow accordingly, the Y7768 ensures consistent CFM delivery and reduces short-cycling. This panel is the direct replacement for legacy Harmony III controllers, maintaining the professional-grade reliability required for high-performance residential and light commercial HVAC zoning systems.
Key Benefits- Supports 4-zone HVAC configuration out of the box with expansion capabilities for complex layouts.
- Advanced airflow management logic designed specifically for Lennox variable speed air handlers and furnaces.
- Integrated diagnostic LEDs provide immediate status updates on zone calls, helping technicians troubleshoot damper motor or thermostat issues.
- On-board Staging and Timing controls allow for fine-tuning of compressor delay and heat stage transitions.
- Robust 3amp fuse protection shields the primary logic board from field wiring shorts.
Is the Y7768 compatible with 3rd party thermostats?
Yes, while optimized for Lennox systems, this panel integrates with standard 24V mechanical or electronic thermostats, provided they are configured for the correct equipment type.
Does this board control the blower speed directly?
The Y7768 communicates with the ECM motor or integrated furnace control to modulate fan speed based on the number of active zones and total system demand.
Can I use this for a 2-zone setup?
Yes, the Lennox Harmony III is flexible; unused zones can be left disconnected without affecting the performance of the active zones.
