Lennox Y7766 Comfort Panel

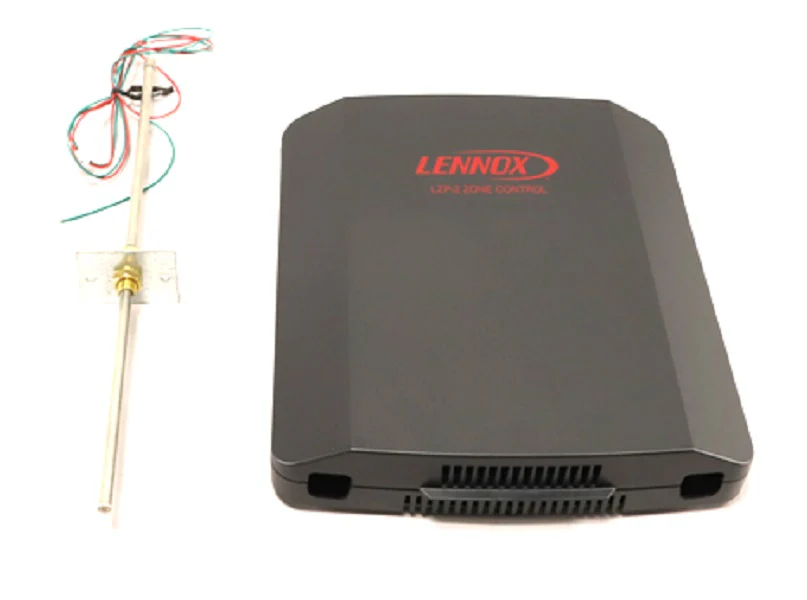

The Lennox Y7766 LZP-2 Two Zone Comfort Panel is a professional-grade zoning control solution designed for technicians managing single-stage heating and cooling systems. This 2-zone HVAC controller enables precise environmental management by directing airflow via motorized dampers based on individual zone thermostat calls. Engineered for high-reliability residential zoning, the LZP-2 integrates seamlessly with single-stage gas furnaces or air handlers and single-stage air conditioning units. It features built-in HVAC diagnostics through real-time LED feedback, indicating damper positions, fan status, and heating/cooling cycles. The solid-state control panel includes an automatic changeover function to alternate between modes during seasonal transitions and permanent program memory to retain system settings during power interruptions. To ensure equipment safety, the unit utilizes a discharge air temperature sensor to prevent coil freezing or heat exchanger overheating. Field installation requires a dedicated 24VAC transformer (up to 75VA) and 18-20 AWG solid wire for optimal signal integrity across the zoning system.
Key Benefits- System Efficiency: Reduces energy consumption by conditioning only occupied zones, preventing unnecessary equipment strain.
- Advanced Protection: Includes a discharge air sensor to monitor plenum temperatures and prevent short-cycling.
- Operational Feedback: Integrated LEDs provide immediate visual status for Zone 1 and Zone 2 damper positions.
- Reliable Logic: Auto-changeover capability ensures consistent comfort without manual seasonal adjustments.
- Rugged Design: Operating temperature range of -40°F to 158°F facilitates installation in various conditioned environments.
Is the Y7766 compatible with heat pump systems?
No, the LZP-2 is specifically designed for single-stage gas/oil furnaces and air conditioners. It is not applicable for heat pump systems or variable-speed gas furnaces.
What type of thermostats should be used with this panel?
Technicians should use standard 24VAC electronic heat/cool thermostats that include a "C" terminal. Mechanical or power-robbing thermostats are not compatible and may cause erratic operation.
Can I power this panel using the HVAC equipment transformer?
It is standard practice to use a separate, stand-alone 24VAC transformer for the LZP-2 to ensure the panel, thermostats, and dampers receive adequate VA without overloading the furnace or air handler transformer.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Lennox Y7766 Comfort Panel
The Lennox Y7766 LZP-2 Two Zone Comfort Panel is a professional-grade zoning control solution designed for technicians managing single-stage heating and cooling systems. This 2-zone HVAC controller enables precise environmental management by directing airflow via motorized dampers based on individual zone thermostat calls. Engineered for high-reliability residential zoning, the LZP-2 integrates seamlessly with single-stage gas furnaces or air handlers and single-stage air conditioning units. It features built-in HVAC diagnostics through real-time LED feedback, indicating damper positions, fan status, and heating/cooling cycles. The solid-state control panel includes an automatic changeover function to alternate between modes during seasonal transitions and permanent program memory to retain system settings during power interruptions. To ensure equipment safety, the unit utilizes a discharge air temperature sensor to prevent coil freezing or heat exchanger overheating. Field installation requires a dedicated 24VAC transformer (up to 75VA) and 18-20 AWG solid wire for optimal signal integrity across the zoning system.
Key Benefits- System Efficiency: Reduces energy consumption by conditioning only occupied zones, preventing unnecessary equipment strain.
- Advanced Protection: Includes a discharge air sensor to monitor plenum temperatures and prevent short-cycling.
- Operational Feedback: Integrated LEDs provide immediate visual status for Zone 1 and Zone 2 damper positions.
- Reliable Logic: Auto-changeover capability ensures consistent comfort without manual seasonal adjustments.
- Rugged Design: Operating temperature range of -40°F to 158°F facilitates installation in various conditioned environments.
Is the Y7766 compatible with heat pump systems?
No, the LZP-2 is specifically designed for single-stage gas/oil furnaces and air conditioners. It is not applicable for heat pump systems or variable-speed gas furnaces.
What type of thermostats should be used with this panel?
Technicians should use standard 24VAC electronic heat/cool thermostats that include a "C" terminal. Mechanical or power-robbing thermostats are not compatible and may cause erratic operation.
Can I power this panel using the HVAC equipment transformer?
It is standard practice to use a separate, stand-alone 24VAC transformer for the LZP-2 to ensure the panel, thermostats, and dampers receive adequate VA without overloading the furnace or air handler transformer.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
