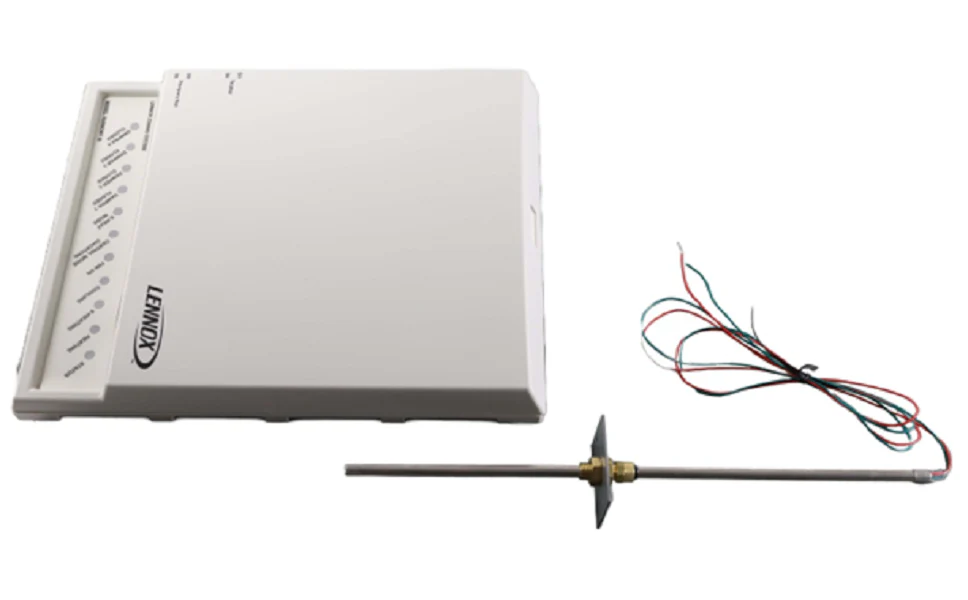

Lennox X9953 Control Panel
The Lennox X9953 serves as the central orchestration point for the Harmony III zoning system, engineered to manage up to four independent zones with precision airflow control. This 4-zone control panel is specifically designed for variable-speed HVAC systems, leveraging a microprocessor to interface with motorized dampers and 24VAC thermostats. As a critical component for high-static diagnostic environments, the X9953 Harmony 3 optimizes discharge air temperature (DAT) through the included 88K38 sensor, ensuring equipment thresholds are not exceeded during staging. It supports multi-stage operation for conventional 2H/2C systems, 3H/2C heat pumps, and dual fuel applications. The panel manages the Variable Speed Motor (VSM) air handler or furnace blower, adjusting CFM based on zone demand to eliminate the need for bypass dampers in most residential designs. Its integrated diagnostic LEDs provide instantaneous feedback for system status, damper positioning, and potential staging delays, making it an essential replacement module for restoring individual zone thermal control.
Key Benefits
- Multi-Zone Precision: Orchestrates independent thermal management for up to 4 zones using standard non-power robbing thermostats.
- Advanced Equipment Compatibility: Engineered for seamless integration with multi-stage heating/cooling and sophisticated dual fuel heat pump systems.
- Dynamic Airflow Regulation: Communicates with VSM blowers to maintain optimal static pressure without requiring bypass ductwork.
- Integrated System Protection: Includes a 5-minute short-cycle delay and discharge air temperature monitoring to prevent evaporator freeze-up or furnace overheating.
- Field-Proven Reliability: Features a high-impact plastic housing with dedicated 3A fuse protection against field wiring shorts.
Common Questions
Is the Harmony III X9953 compatible with non-Lennox equipment?
The X9953 is specifically optimized for Lennox variable-speed furnaces and air handlers (e.g., SLP98, CBX32MV). While it uses standard 24V thermostat signals, the advanced VSM communication protocols are proprietary to the Harmony architecture.
Why is the status LED flashing on the control board?
Flash patterns typically indicate specific system states. For instance, diagnostic lights 2, 3, and 4 flashing together often signal a discharge air temperature limit trip or a staging delay. Consult the technical manual for the specific flash code sequence.
Does this panel require a dedicated transformer?
Yes, the Harmony III system must be powered by a separate, field-supplied 24VAC transformer (minimum 40VA-75VA depending on damper load) to avoid overloading the integrated equipment control transformer.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
