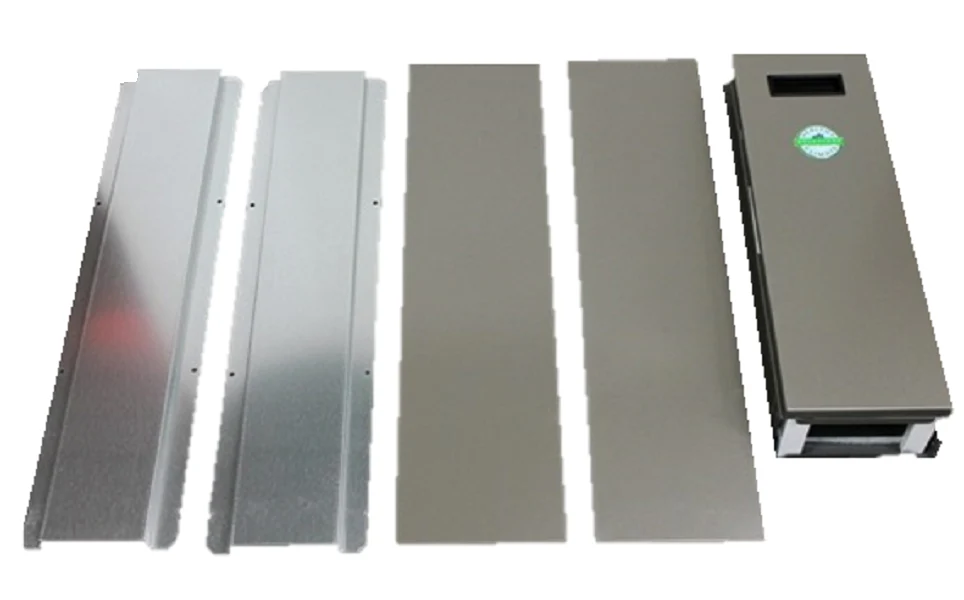

Lennox X6661 Filter Cabinet
The Lennox X6661 Filter Cabinet (model HCC20-28) is a heavy-duty, 20-gauge steel enclosure engineered for high-performance residential and commercial HVAC applications. This Healthy Climate HC16 cabinet is specifically designed to house high-efficiency 20x25x5 media filters, providing a low-resistance path for optimal airflow while protecting internal system components from particulate buildup. With its actual dimensions of 21" x 28.5" x 7", this cabinet features a tool-less access door and a compact, snap-together design that simplifies field assembly for installers. It supports a 400-lb static load, making it robust enough to serve as a platform for an indoor coil or air handler. By integrating a Lennox X6661, contractors can ensure whole-home filtration and maintain peak HVAC system efficiency through a tight-sealing air cleaner housing that accommodates high-MERV pleated filters without requiring additional electrical connections.
Key Benefits- Precise Compatibility: Engineered as the direct OEM replacement cabinet for Healthy Climate HC10 and HC16 air cleaner systems.
- Durable Construction: Built with heavy-gauge steel and a powder-coated finish to withstand up to 400 lbs of static weight.
- High-Efficiency Filtration Support: Optimized for MERV 11, MERV 13, and MERV 16 media filters to capture bioaerosols and fine particulates.
- Field-Flexible Installation: Features a multi-position design suitable for horizontal or vertical applications in furnace or air handler setups.
- Maintenance Accessibility: The tool-less access door allows technicians to perform rapid 20x25x5 filter replacements, reducing service time.
What are the differences between nominal and actual dimensions for the X6661?
The cabinet is nominally rated for a 20" x 25" x 5" filter. However, the physical external footprint (actual dimensions) is 21" x 28.5" x 7". Always verify your plenum clearance before installation.
Does this unit come with the filter media included?
No, the Lennox X6661 is the metal housing only. The filter media (such as the X6675 or X6673) must be purchased separately based on the specific MERV requirements of the project.
Can the airflow direction be reversed in this cabinet?
Yes. The cabinet is versatile for any mounting position. Airflow direction is determined by the orientation of the filter media inserted into the guide rails; simply align the filter's directional arrows with the system's return air path.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
