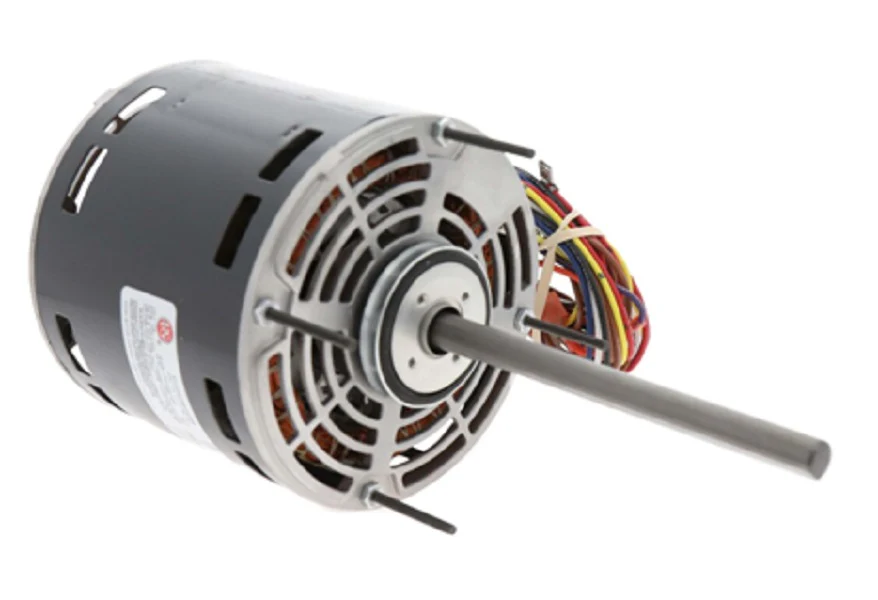

Lennox X5675 Motor
The Lennox X5675 Motor is a high-performance 1/2 HP blower motor engineered for precise airflow management in residential and commercial Lennox HVAC systems. As a Permanent Split Capacitor (PSC) motor, it operates on a standard 115Vac single-phase power supply, drawing 7.1 Amps at full load. This 4-speed motor allows for flexible field adjustments to meet specific static pressure requirements, ensuring consistent performance across various ductwork configurations. With a standard 1075 RPM rating and a 48YZ NEMA frame size, the X5675 serves as a direct Lennox OEM replacement part for technicians looking to restore factory-spec air delivery.
Designed for durability in demanding environments, this motor features an Open Air Over (OAO) enclosure to facilitate optimal heat dissipation during continuous operation. The self-aligning sleeve bearings and 1/2-inch shaft are built to withstand high radial loads, while the reversible rotation capability provides essential versatility for different blower wheel orientations. Whether utilizing the ring mount or stud mount configuration, this direct drive blower motor offers a reliable solution for resolving common system faults, such as seized bearings or winding failures, maintaining the integrity of the original air handler or furnace assembly.
Key Benefits:
- Multi-Speed Versatility: Four distinct speed taps provide the airflow precision needed for both heating and cooling stages.
- OEM Compatibility: Exact electrical and physical match for Lennox X5675, eliminating the need for mounting bracket modifications.
- Enhanced Cooling: The Open Air Over (OAO) design utilizes the system's own airflow to prevent thermal overload and extend component life.
- Installation Flexibility: Supports both stud and ring mounting with a 1/2" diameter reversible shaft for universal blower housing fitment.
- Quiet Operation: Self-aligning sleeve bearings ensure smooth rotation and reduced vibration compared to standard ball-bearing alternatives.
Common Questions:
What does the 48YZ frame size mean for installation?
The 48YZ designation indicates a 5.6-inch diameter motor body with specialized mounting provisions. This ensures the Lennox X5675 fits securely within the original blower housing without requiring aftermarket adapter kits.
Can I use a different capacitor with this motor?
For peak efficiency and to prevent overheating of the windings, always match the microfarad (MFD) and voltage rating specified on the Lennox X5675 motor nameplate. Using an incorrect run capacitor can lead to premature motor failure.
How do I resolve a 'Motor Unable to Start' error code?
If your system displays an error related to blower failure, first verify the 115V power supply and check for a seized blower wheel. If the shaft does not spin freely or the PSC motor hums without turning, a full replacement of the X5675 is typically required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
