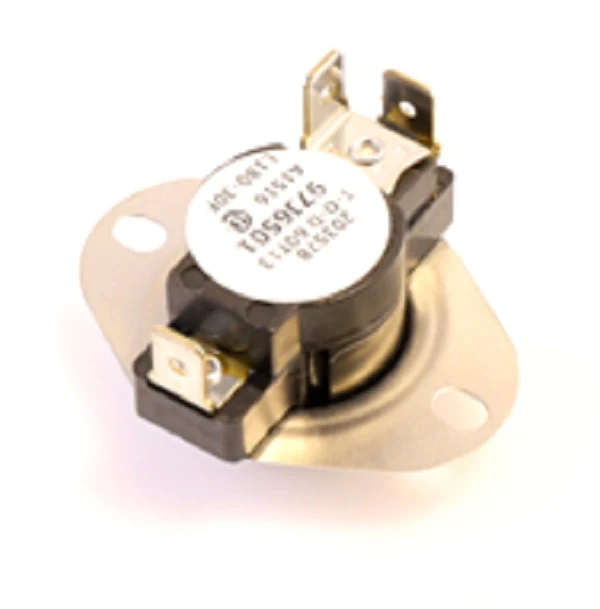

Lennox 97J65 Limit Switch
The Lennox 97J65 Limit Switch is a critical safety component designed for precise thermal regulation within Lennox residential furnace units. Featuring a 150-180F AUTO temperature range, this primary limit control monitors heat exchanger temperatures to prevent thermal runaway. When the internal plenum temperature reaches the 180°F cutout point, the switch opens the circuit to the gas valve, shutting down combustion while allowing the blower motor to dissipate residual heat. Once the temperature drops to the 150°F reset point, the switch automatically closes to resume normal heating cycles. This L180-30F equivalent is a direct OEM replacement part engineered for high-cycle reliability in high-efficiency gas furnaces. Ensuring the furnace high limit switch is functioning correctly is essential for preventing structural damage to the heat exchanger and maintaining HVAC system safety protocols during peak demand. This SPST (Single Pole Single Throw) switch is a standard Lennox furnace repair part for troubleshooting overheating issues and frequent system cycling.
Key Benefits for Contractors
- Precision Thermal Calibration: Fixed 180°F trip point ensures the system operates within safe thermal parameters to protect the heat exchanger.
- Automatic Reset Functionality: The 30°F differential allows the system to automatically resume operation once temperatures stabilize at 150°F.
- OEM Compatibility: Designed specifically for Lennox equipment, ensuring correct mounting footprints and electrical termination for fast installation.
- Enhanced Equipment Longevity: Prevents long-term stress on components by mitigating overheating conditions caused by restricted airflow or oversized burners.
Common Technical Questions
What causes the 97J65 limit switch to trip repeatedly?
Frequent tripping is typically symptomatic of restricted airflow. Check for a dirty HVAC filter, blocked return air grilles, or a failing blower motor that isn't moving enough CFM across the heat exchanger.
Can I bypass this switch for testing purposes?
Temporary bypassing is only for immediate diagnostic continuity testing by a certified HVAC technician. Operating a furnace with a bypassed limit switch is a serious safety hazard and can lead to equipment failure or fire.
Is the Lennox 97J65 compatible with other brands?
While this switch is an OEM part for Lennox and Armstrong Air units, always verify the L-rating and flange depth against the manufacturer's specifications to ensure proper fitment and cut-out accuracy.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $21.79
