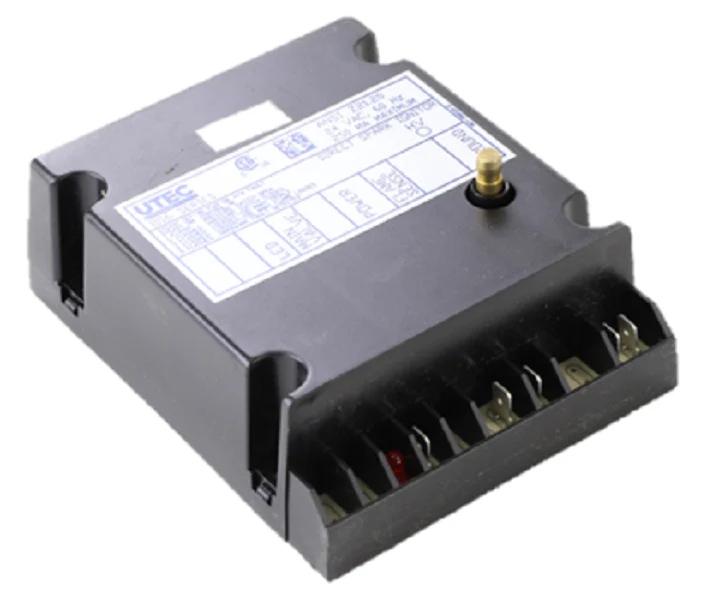

Lennox 96W66 Control Board
As a direct replacement for your failed furnace control, the Lennox 96W66 Ignition Control Board offers the precise timing and signal management required for high-efficiency operation. This direct spark ignition (DSI) module, manufactured by UT Electronic Controls as part of the 1016 series, is designed to handle the 24VAC 60Hz power requirements of residential units. When you are troubleshooting a failed ignition sequence or an unresponsive gas valve, swapping in this OEM furnace circuit board ensures that your diagnostics align with factory-specified diagnostic LED codes. It is engineered specifically for compatibility with the Lennox GCS16-261-50-5P and related GCS16 and GCS20 package units, replacing older part numbers like 102186-02. By restoring proper communication between the flame sensor and the gas valve, this board eliminates common intermittent firing issues caused by logic degradation or cracked solder joints on aftermarket alternatives. For professional contractors, choosing a Lennox 96W66 replacement means a drop-in installation with standard spade terminals, ensuring the unit returns to peak performance without modifying the existing harness.
- OEM Reliability: Unlike generic universal boards, the Lennox 96W66 is calibrated specifically for Lennox and Allied brand sequence timings to prevent nuisance lockouts.
- Technical Precision: This DSI control module manages gas flow and spark timing with a 250 mA maximum draw, protecting your 24V transformer from overcurrent.
- Simplified Troubleshooting: Features onboard LED indicators that help you quickly identify if the issue is a limit switch open, a pressure switch failure, or a flame sense loss.
- Broad Compatibility: Directly replaces part numbers 102186-02 and 161T01 across Lennox, Armstrong, Ducane, and Concord equipment.
Common HVAC Contractor Questions
What does it mean if my Lennox board shows a red and green alternating flash?
An alternating red and green flash typically indicates a flame-sensing failure. Before replacing the Lennox 96W66 board, inspect the flame sensor for carbon buildup or check for a loose ground wire. If the sensor is clean and the ground is solid, the logic on the ignition control board may no longer be processing the microamp signal correctly.
Will this board work on hot surface ignition (HSI) systems?
No, the 96W66 is a Direct Spark Ignition (DSI) control. It is designed to generate a spark for gas ignition rather than energizing a glow bar. Always check your furnace's wiring diagram to confirm if your system utilizes DSI or HSI before ordering.
Can I use this to replace a 102186-02 control board?
Yes, the 96W66 is the official manufacturer-specified replacement for the legacy 102186-02 part number. It uses the same mounting footprint and terminal layout for a seamless swap.
