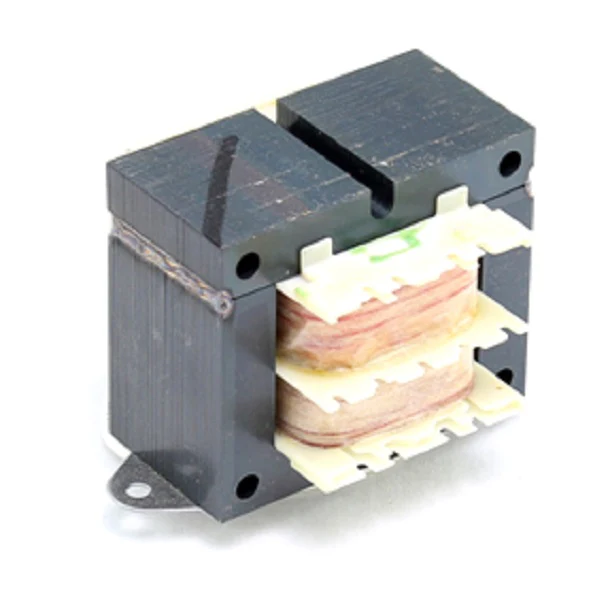

Lennox 96M07 Transformer
The Lennox 96M07 Transformer is a heavy-duty, industrial-grade electrical component designed for compatibility with high-capacity Lennox packaged units and RTU systems. Engineered to handle a multi-tap input, this 460V primary transformer effectively steps down high-voltage power to a 230V secondary output, providing a stable 175VA power rating for critical control boards and peripheral HVAC components. This OEM Lennox transformer serves as a direct replacement for the 100530-01 model and has been succeeded in newer production lines by the Lennox 10H20 transformer. For service technicians, ensuring the correct volt-ampere capacity is essential to prevent secondary-side overloads and premature failure of the integrated thermal protection. This unit is built for 60Hz operation and features standard foot-mount housing for seamless installation within existing electrical compartments. When diagnosing power loss in commercial systems, verify the Lennox 96M07 specifications against the system nameplate to ensure sufficient wattage for secondary loads, including contactors and relay coils.
Key Benefits for Technicians- Direct OEM Compatibility: Perfectly replaces legacy 100530-01 units in Lennox rooftop systems without requiring modifications to the mounting bracket.
- Enhanced Power Rating: The 175VA capacity provides a robust power buffer for complex commercial control circuits.
- High-Voltage Step-Down: Specifically designed for 460VAC commercial power grids, outputting the 230VAC required for specialized internal components.
- Rugged Construction: Built to withstand the high ambient temperatures of packaged unit cabinets while maintaining stable impedance.
Can I use a 40VA transformer to replace the 96M07?
No. Using a lower VA rating will likely cause the transformer to overheat or pop the secondary fuse immediately upon the compressor contactor engaging. Always match or exceed the original 175VA rating.
What are the symptoms of a failing Lennox 96M07?
Technicians typically report a lack of 230V output at the secondary terminals, a burnt smell near the windings, or an audible humming that indicates internal lamination separation or shorts.
Is this transformer interchangeable with the 10H20?
Yes. The 10H20 is the official replacement part number for the discontinued 96M07 and shares the same electrical specifications and mounting footprint.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $71.60
-65%$71.60
$25.06Lennox 96M07 Transformer
The Lennox 96M07 Transformer is a heavy-duty, industrial-grade electrical component designed for compatibility with high-capacity Lennox packaged units and RTU systems. Engineered to handle a multi-tap input, this 460V primary transformer effectively steps down high-voltage power to a 230V secondary output, providing a stable 175VA power rating for critical control boards and peripheral HVAC components. This OEM Lennox transformer serves as a direct replacement for the 100530-01 model and has been succeeded in newer production lines by the Lennox 10H20 transformer. For service technicians, ensuring the correct volt-ampere capacity is essential to prevent secondary-side overloads and premature failure of the integrated thermal protection. This unit is built for 60Hz operation and features standard foot-mount housing for seamless installation within existing electrical compartments. When diagnosing power loss in commercial systems, verify the Lennox 96M07 specifications against the system nameplate to ensure sufficient wattage for secondary loads, including contactors and relay coils.
Key Benefits for Technicians- Direct OEM Compatibility: Perfectly replaces legacy 100530-01 units in Lennox rooftop systems without requiring modifications to the mounting bracket.
- Enhanced Power Rating: The 175VA capacity provides a robust power buffer for complex commercial control circuits.
- High-Voltage Step-Down: Specifically designed for 460VAC commercial power grids, outputting the 230VAC required for specialized internal components.
- Rugged Construction: Built to withstand the high ambient temperatures of packaged unit cabinets while maintaining stable impedance.
Can I use a 40VA transformer to replace the 96M07?
No. Using a lower VA rating will likely cause the transformer to overheat or pop the secondary fuse immediately upon the compressor contactor engaging. Always match or exceed the original 175VA rating.
What are the symptoms of a failing Lennox 96M07?
Technicians typically report a lack of 230V output at the secondary terminals, a burnt smell near the windings, or an audible humming that indicates internal lamination separation or shorts.
Is this transformer interchangeable with the 10H20?
Yes. The 10H20 is the official replacement part number for the discontinued 96M07 and shares the same electrical specifications and mounting footprint.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
