Lennox 95M53 Orifice

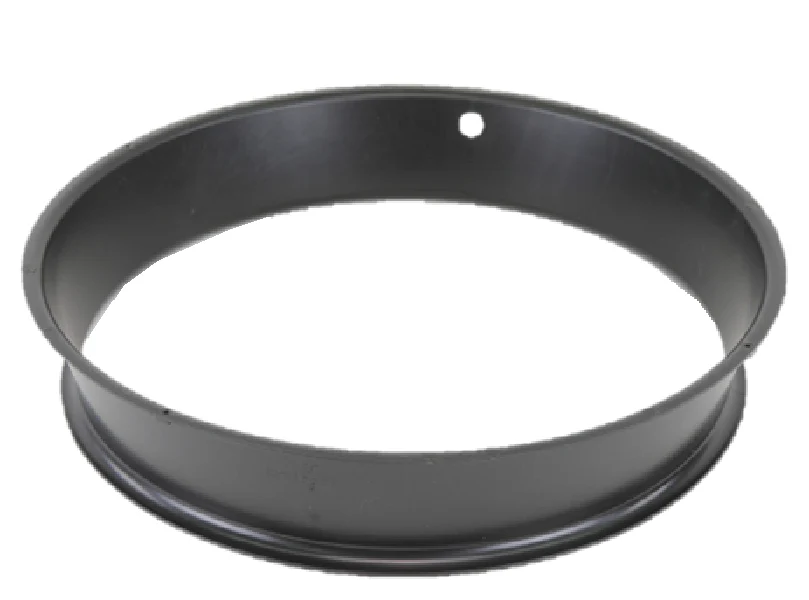

Technicians and contractors know that maintaining proper airflow is non-negotiable for system longevity and efficiency. The Lennox 95M53 Orifice, also recognized by part numbers 100001-03 and 68J46, is a critical condenser fan orifice ring designed specifically for 13ACD, 13ACX, and 13HPD series units. This HVAC replacement part features an 18-1/2 inch internal diameter and stands approximately 4 inches tall, serving as the aerodynamic guide for the condenser fan. By preventing discharge air from recirculating back through the coils, this Lennox OEM part ensures the HVAC condenser fan operates at peak static pressure. Constructed from high-durability black plastic, the 95M53 is engineered to withstand the thermal stress of outdoor environments while maintaining precise condenser airflow management. For pros looking to resolve unit "short-cycling" or high head pressure caused by poor heat rejection, verifying the integrity of this shroud is a mandatory diagnostic step during Lennox HVAC repair.
- System Efficiency: Eliminates air bypass, ensuring 100% of the fan's CFM is utilized for cooling the condenser coils.
- Direct Compatibility: Drop-in replacement for Lennox 68J4601 and 100001-03, eliminating the need for field modifications.
- Rugged Construction: Industrial-grade plastic resists UV degradation and impact, critical for long-term outdoor exposure.
- Vibration Dampening: Precise fitment reduces harmonic resonance and mechanical noise during heavy compressor loads.
Common Questions
What happens if the orifice ring is cracked or missing?
Without a sealed 95M53 orifice, the fan cannot create the pressure differential needed to pull air through the coil efficiently. This results in elevated head pressures and reduced cooling capacity.
Is the Lennox 95M53 compatible with older 13ACD units?
Yes, this Lennox condenser shroud is the standard specification for the 13ACD, 13ACX, and 13HPD TSA series. Always cross-reference the mounting diameter (approx. 21 inches) before installation.
Can this orifice ring be used in gas heating applications?
No. Although some databases may categorize it broadly, the 95M53 is a mechanical fan ring for air conditioning and heat pump condensers, not a gas burner orifice.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
