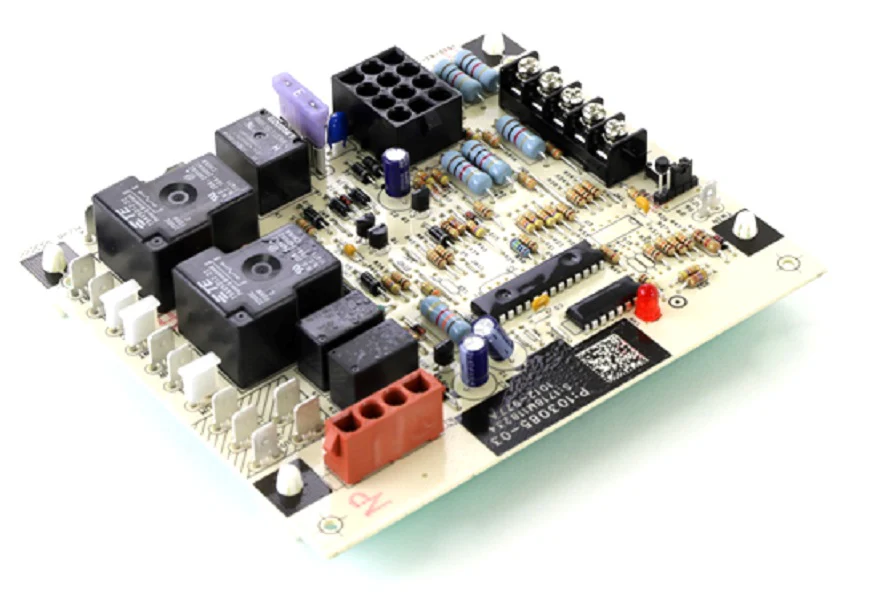

Lennox 94W83 Ignition Board
As an experienced HVAC technician, you know that the Lennox 94W83 Ignition Board is a critical OEM replacement part for maintaining system reliability in single-stage residential furnaces. This integrated furnace control (IFC) is specifically designed to manage systems utilizing Single-Stage PSC Motors and operates within a standard 18-30 VAC range. When troubleshooting a furnace not heating, verifying the 103085-03 sequence is essential, as this board regulates the ignition sequence, flame sensing, and blower fan timing with high precision. By replacing a failing module with this Lennox 94W83 circuit board, you ensure the unit adheres to original factory safety timings and diagnostic LED protocols, which streamline field service calls. This board is engineered for universal compatibility across various Lennox, Armstrong, and Ducane models, effectively replacing legacy part numbers such as 103085-01, 103085-02, and 81W11. When performing a furnace control board replacement, always verify line-voltage polarity and proper grounding to prevent nuisance lockouts and ensure a clean hot surface ignition cycle.
Key Benefits
- Direct OEM Compatibility: Engineered for an exact fit in Lennox single-stage furnaces, ensuring all mounting holes and wiring harnesses align without field modification.
- Enhanced Diagnostics: Built-in diagnostic LED indicators provide immediate flash codes to assist in rapid troubleshooting of pressure switch, limit, or flame sense failures.
- Integrated Blower Control: Efficiently manages PSC motor timings, optimizing airflow during the heating cycle to prevent heat exchanger overheating.
- Robust Safety Protocols: Maintains factory-set timings for trial-for-ignition and flame rollout monitoring to ensure safe appliance operation.
Common Questions
What are the symptoms of a failing Lennox 94W83 board?
Common indicators include the furnace blower running constantly, a complete failure to initiate the hot surface ignitor, or intermittent flame loss during the burner cycle that isn't resolved by cleaning the flame sensor.
Can I use this board to replace an older 103085-01 module?
Yes, the 94W83 is the current manufacturer-authorized replacement for 103085-01, 103085-02, and 81W11 parts. It is designed to be backwards compatible with these specific integrated furnace controls.
Does this board support variable speed blower motors?
No, this specific control board is designed for Single-Stage PSC (Permanent Split Capacitor) motors. If your unit utilizes an ECM or variable speed motor, you must verify the specific part number required for that drive type.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $165.03
-65%$165.03
$57.76Lennox 94W83 Ignition Board
