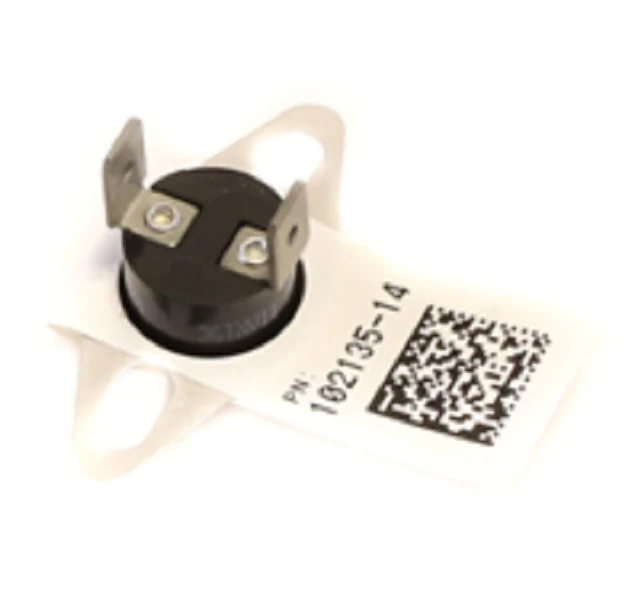

Lennox 89W14 Limit Switch
The Lennox 89W14 Limit Switch is a critical safety component designed for high-limit temperature monitoring in Lennox residential furnaces and HVAC systems. This L175-30F thermal limit switch is engineered to open the electrical circuit at 175°F and automatically reset when the temperature drops by 30°F, preventing heat exchanger damage and ensuring safe operational parameters. As a genuine Lennox replacement part, it maintains the precise calibration required for OEM system performance. Technicians should verify airflow and filter conditions when diagnosing a tripped furnace limit control, as restricted return air is a common cause of premature failure. This rollout switch compatible device features standard 1/4-inch male spade terminals for easy integration into the existing wiring harness. Its robust bimetal disc construction provides reliable switching cycles, making it a dependable choice for restoring HVAC high limit protection in compatible Lennox, Armstrong, and AirEase units.
Technical Specifications & Key Benefits:
- Internal Part Number: 89W14
- Temperature Calibration: Opens at 175°F / Resets at 145°F (L175-30F)
- Interface: 1/4" quick-connect terminals for fast field installation
- Safety Compliance: Designed to meet OEM specifications for thermal protection
- System Reliability: Prevents heat exchanger warping by interrupting the burner circuit during over-temperature events
Common Questions:
How do I know if my Lennox furnace limit switch is bad?
A faulty switch typically results in the indoor blower motor running continuously while the burners fail to ignite, or the system short-cycling. Resistance should be checked with a multimeter; a closed circuit at room temperature is expected.
What causes a limit switch to trip repeatedly?
Beyond a mechanical failure of the switch itself, frequent tripping is often caused by a dirty air filter, an oversized burner orifice, or a malfunctioning blower motor contributing to insufficient heat dissipation.
Can I use a different temperature-rated switch?
No. For safety and equipment longevity, always match the L175-30F rating. Using a switch with a higher opening temperature can lead to catastrophic heat exchanger failure and safety hazards.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
