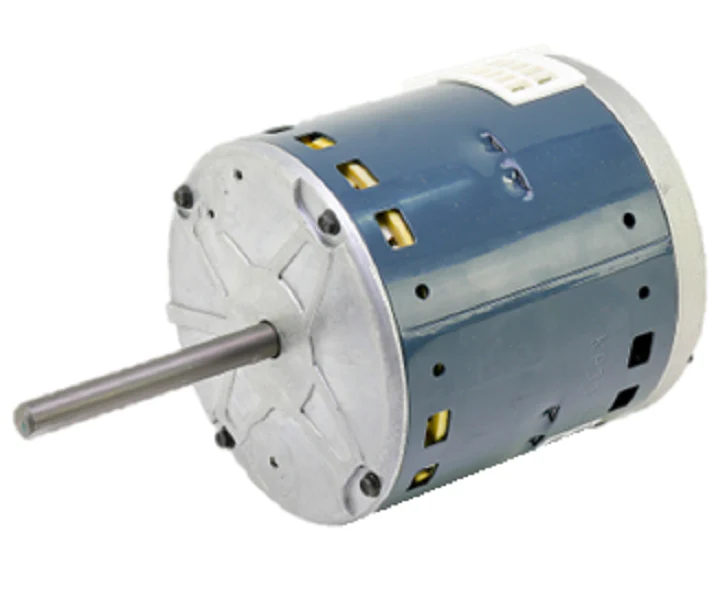

Lennox 87W48 Motor
The Lennox 87W48 Motor is a high-efficiency 1/2 HP ECM blower motor designed for precise airflow control in residential and commercial HVAC applications. Engineered as a constant-torque X13 blower motor, this technical component operates within a 208-230V range and features a variable speed design for optimized static pressure management. For contractors in the field, this Lennox OEM replacement motor offers a significant performance upgrade over standard PSC motors, providing quieter operation and reduced energy consumption. The 87W48 HVAC motor features a CCW rotation, 600-1200 RPM range, and is built with a standard 48 NEMA frame for seamless mounting. This Lennox furnace motor is programmed specifically for high-efficiency air handlers and furnaces, ensuring proper CFM delivery across varying ductwork conditions without the need for manual speed tap adjustments. As a veteran-grade brushless DC motor, it incorporates internal thermal protection and advanced ECM technology to maintain consistent torque and system reliability in demanding thermal environments.
Key Benefits for Technicians- Precise Speed Control: The X13 architecture allows for adaptive speed modulation to maintain airflow requirements under varying static pressures.
- Reduced Operational Costs: Advanced ECM technology significantly lowers wattage consumption compared to traditional induction motors.
- OEM Compatibility: Genuine Lennox 87W48 ensures the frame size and wiring harness align perfectly with existing system specifications.
- Quiet Performance: Soft-start capabilities and balanced rotation minimize mechanical vibration and acoustic noise.
Is the Lennox 87W48 a direct replacement for PSC motors?
Technically, while it replaces 1/2 HP motors in specific Lennox units, switching from a PSC to an ECM requires verifying the control board's output signals and the wiring harness configuration.
What is the rotation direction for this motor?
This specific 87W48 motor is rated for CCW (Counter-Clockwise) rotation. Always verify the orientation of your blower wheel before finalizing the installation.
Does this motor require a capacitor?
No. As an ECM blower motor, the 87W48 uses integrated electronics and a permanent magnet rotor, eliminating the need for an external run capacitor.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Lennox 87W48 Motor
The Lennox 87W48 Motor is a high-efficiency 1/2 HP ECM blower motor designed for precise airflow control in residential and commercial HVAC applications. Engineered as a constant-torque X13 blower motor, this technical component operates within a 208-230V range and features a variable speed design for optimized static pressure management. For contractors in the field, this Lennox OEM replacement motor offers a significant performance upgrade over standard PSC motors, providing quieter operation and reduced energy consumption. The 87W48 HVAC motor features a CCW rotation, 600-1200 RPM range, and is built with a standard 48 NEMA frame for seamless mounting. This Lennox furnace motor is programmed specifically for high-efficiency air handlers and furnaces, ensuring proper CFM delivery across varying ductwork conditions without the need for manual speed tap adjustments. As a veteran-grade brushless DC motor, it incorporates internal thermal protection and advanced ECM technology to maintain consistent torque and system reliability in demanding thermal environments.
Key Benefits for Technicians- Precise Speed Control: The X13 architecture allows for adaptive speed modulation to maintain airflow requirements under varying static pressures.
- Reduced Operational Costs: Advanced ECM technology significantly lowers wattage consumption compared to traditional induction motors.
- OEM Compatibility: Genuine Lennox 87W48 ensures the frame size and wiring harness align perfectly with existing system specifications.
- Quiet Performance: Soft-start capabilities and balanced rotation minimize mechanical vibration and acoustic noise.
Is the Lennox 87W48 a direct replacement for PSC motors?
Technically, while it replaces 1/2 HP motors in specific Lennox units, switching from a PSC to an ECM requires verifying the control board's output signals and the wiring harness configuration.
What is the rotation direction for this motor?
This specific 87W48 motor is rated for CCW (Counter-Clockwise) rotation. Always verify the orientation of your blower wheel before finalizing the installation.
Does this motor require a capacitor?
No. As an ECM blower motor, the 87W48 uses integrated electronics and a permanent magnet rotor, eliminating the need for an external run capacitor.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
