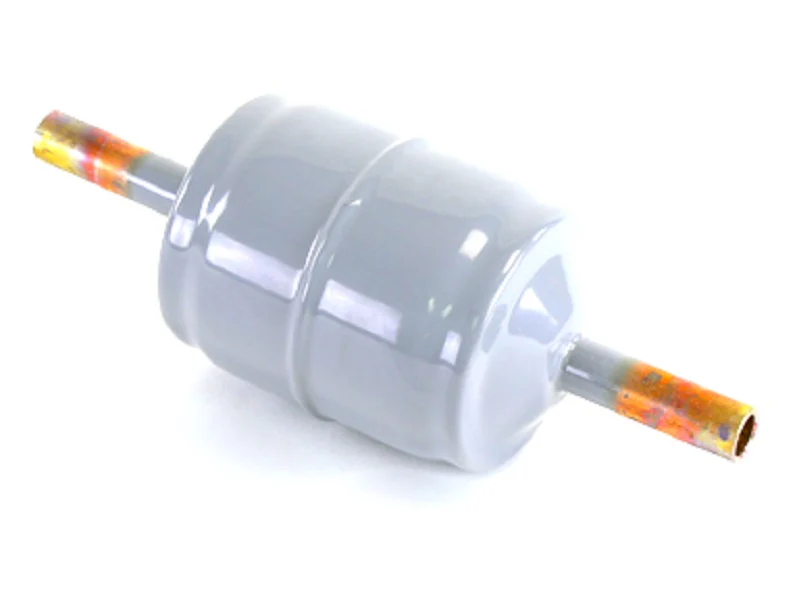

Lennox 83L61 Drier
The Lennox 83L61 is a high-capacity liquid line filter drier engineered for heavy-duty moisture and acid removal in R410A refrigerant systems. Designed for technical performance, this unit features a solid desiccant core that provides superior filtration for systems up to a 7.4-ton capacity. The 3/8 inch ODF solder connections (swat fit) allow for high-integrity brazed joints, ensuring a leak-free installation in the liquid line. As a veteran technician knows, maintaining a clean refrigerant circuit is critical for protecting the compressor and thermal expansion valve (TXV) from debris and non-condensables. The 83L61 effectively traps particulates and neutralizes harmful acids that can lead to motor burnout. Whether you are performing a seasonal recovery and recharge or a full system retrofit, installing this OEM Lennox part ensures that the system maintains optimal subcooling and prevents restricted flow, which can cause premature component failure in modern high-pressure HVACR equipment.
Key Benefits
- Optimized for R410A: High-pressure shell design rated for 600+ psig operating pressures typical of R410A systems.
- Reliable Contaminant Trapping: Solid core provides 8 cubic inches of filtration to capture moisture, copper shavings, and acid.
- Universal Compatibility: While optimized for Lennox equipment, the 3/8" ODF connections fit standard 3/8" liquid lines across multiple brands.
- Enhanced Component Protection: Safeguards sensitive metering devices and compressor valves from sludge and ice formation.
Common Questions
- When should I replace the 83L61 filter drier? You must replace the drier whenever the refrigerant circuit is opened to the atmosphere for repairs, or if you detect a temperature drop of more than 2-3°F across the inlet and outlet, which indicates a restriction.
- Is this drier compatible with POE oil? Yes, the desiccant material is specifically selected to be compatible with Polyolester (POE) oils used in R410A and R22 systems.
- Which direction should I install this? This is a flow-dependent drier. Ensure the arrow on the canister points toward the metering device (evaporator) and away from the condenser.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
