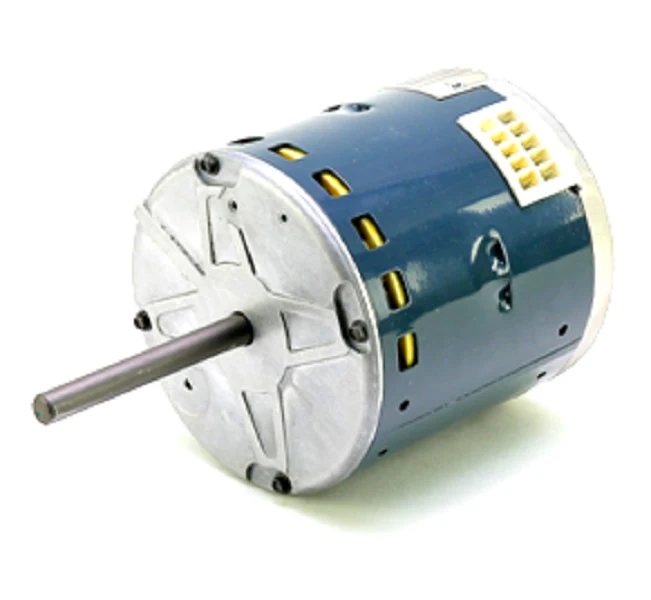

Lennox 81W34 Blower Motor
The Lennox 81W34 is a 1/2 HP X13 blower motor and module assembly designed for high-efficiency air handlers and residential furnaces. This ECM constant torque motor operates at 115V and 1050 RPM, specifically engineered to replace failed blowers in Lennox systems while maintaining factory-specified airflow performance. As a pre-programmed OEM motor replacement, it eliminates the need for field programming, ensuring that the torque curves and ramp speeds align precisely with the original equipment design. Utilizing a NEMA 48 frame size and a 1/2-inch shaft diameter, this direct drive blower motor manages static pressure fluctuations more effectively than standard PSC alternatives. For field technicians, verifying the 16-pin harness connection and ensuring proper grounding is essential during installation to prevent premature module failure. Integrating this Lennox replacement motor ensures the HVAC system retains its SEER rating and delivers consistent cubic feet per minute (CFM) across various ductwork configurations.
Key Benefits for Technicians- OEM Precision: Factory-programmed X13 blower motor module ensures exact plug-and-play compatibility with Lennox control boards.
- Operational Efficiency: Electronic Commutation significantly reduces amperage draw compared to induction motors, lowering overall system energy consumption.
- Load Sensing Technology: Automatically adjusts torque to maintain consistent airflow as filter static pressure increases.
- Simplified Installation: Standard NEMA 48 frame and resilient mounting compatibility reduce time spent on-site.
Does the 81W34 require a capacitor for installation?
No, as an ECM X13 motor, this unit features an integrated control module that handles phase conversion and startup without an external run capacitor.
Can this motor be used in 230V applications?
No, the Lennox 81W34 is rated strictly for 115V single-phase power. Applying 230V will result in immediate failure of the control module.
What causes the module on these X13 motors to fail prematurely?
The most common causes are high static pressure due to restricted ductwork and voltage surges. Always check the Total External Static Pressure (TESP) when installing a replacement blower motor.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $425.26
-65%$425.26
$148.84Lennox 81W34 Blower Motor
The Lennox 81W34 is a 1/2 HP X13 blower motor and module assembly designed for high-efficiency air handlers and residential furnaces. This ECM constant torque motor operates at 115V and 1050 RPM, specifically engineered to replace failed blowers in Lennox systems while maintaining factory-specified airflow performance. As a pre-programmed OEM motor replacement, it eliminates the need for field programming, ensuring that the torque curves and ramp speeds align precisely with the original equipment design. Utilizing a NEMA 48 frame size and a 1/2-inch shaft diameter, this direct drive blower motor manages static pressure fluctuations more effectively than standard PSC alternatives. For field technicians, verifying the 16-pin harness connection and ensuring proper grounding is essential during installation to prevent premature module failure. Integrating this Lennox replacement motor ensures the HVAC system retains its SEER rating and delivers consistent cubic feet per minute (CFM) across various ductwork configurations.
Key Benefits for Technicians- OEM Precision: Factory-programmed X13 blower motor module ensures exact plug-and-play compatibility with Lennox control boards.
- Operational Efficiency: Electronic Commutation significantly reduces amperage draw compared to induction motors, lowering overall system energy consumption.
- Load Sensing Technology: Automatically adjusts torque to maintain consistent airflow as filter static pressure increases.
- Simplified Installation: Standard NEMA 48 frame and resilient mounting compatibility reduce time spent on-site.
Does the 81W34 require a capacitor for installation?
No, as an ECM X13 motor, this unit features an integrated control module that handles phase conversion and startup without an external run capacitor.
Can this motor be used in 230V applications?
No, the Lennox 81W34 is rated strictly for 115V single-phase power. Applying 230V will result in immediate failure of the control module.
What causes the module on these X13 motors to fail prematurely?
The most common causes are high static pressure due to restricted ductwork and voltage surges. Always check the Total External Static Pressure (TESP) when installing a replacement blower motor.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
