Lennox 81J69 Hard Start Kit

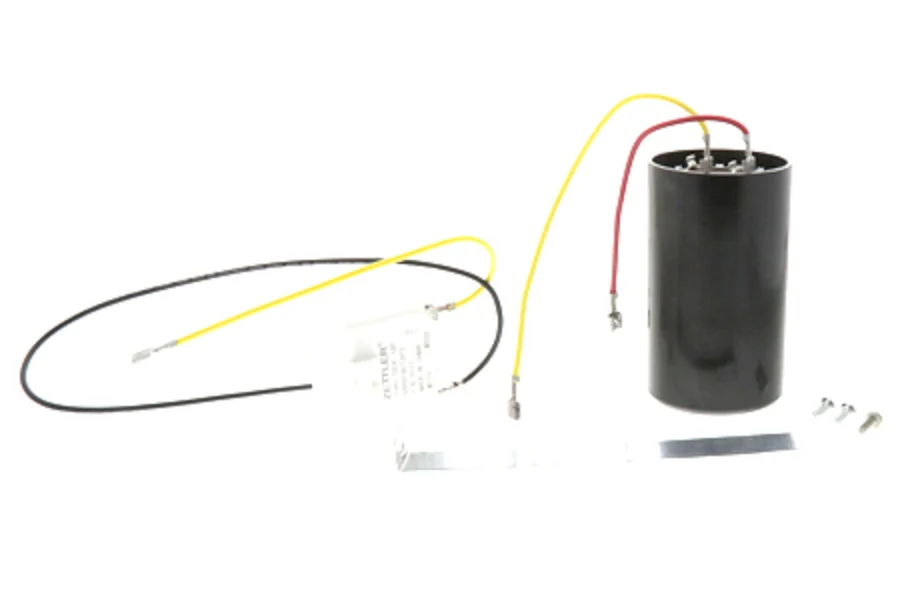

The Lennox 81J69 Hard Start Kit is a field-proven solution for technicians looking to resolve compressor starting issues on single-phase HVAC systems. This OEM hard start capacitor kit, also recognized by part number LB-31200BW, features a high-capacitance 270-324 MFD start capacitor and a heavy-duty potential relay. Its primary function is to boost starting torque, allowing a compressor to overcome mechanical resistance—inertial load—during the initial high-current draw of the startup phase. By reducing the duration of this peak load, the kit minimizes heat buildup in the windings and prevents compressor burnout, particularly in systems with extended line sets or non-bleed TXVs where high head pressures are present at startup.
Designed for residential and light commercial air conditioners and heat pumps, including compatibility with Lennox L26i and L36i models, this kit is an essential preventative measure for aging compressors or units operating in low-voltage environments. The integration of Lennox genuine parts ensures that the electrical timing of the relay matches the motor’s back-EMF, providing a precise disconnect that protects the start winding from overcurrent. Installing this HVAC compressor booster helps stabilize power cycling and reduces auxiliary electrical strain across the entire system.
Key Benefits- Provides high starting torque to overcome high head pressure or mechanical friction during startup.
- Includes a 270-324 MFD capacitor and potential relay for precise electrical disconnect.
- Reduces compressor startup current (LRA) duration to mitigate winding overheating.
- Optimizes performance for systems utilizing long refrigerant line sets or fixed orifice metering.
- Compatible with a wide range of Lennox single-phase compressors and specific air handler models.
When should a technician install a Lennox 81J69 kit?
This kit is recommended when a compressor struggles to start due to low line voltage, high differential pressures at startup, or when a system has been upgraded with longer refrigerant piping that increases initial load.
Does this kit work with variable-speed compressors?
This hard start assembly is specifically engineered for single-phase, fixed-speed, or 2-stage compressors. Always verify the motor type and wiring diagram before installation in inverter-driven or variable-speed systems.
Can this replace a standard soft start?
While a soft start modulates the current ramp-up, the 81J69 Hard Start Kit provides a high-torque mechanical boost. It is the preferred choice for older "sticky" compressors or high-pressure startup scenarios found in traditional split systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
