Lennox 77W09 Conversion

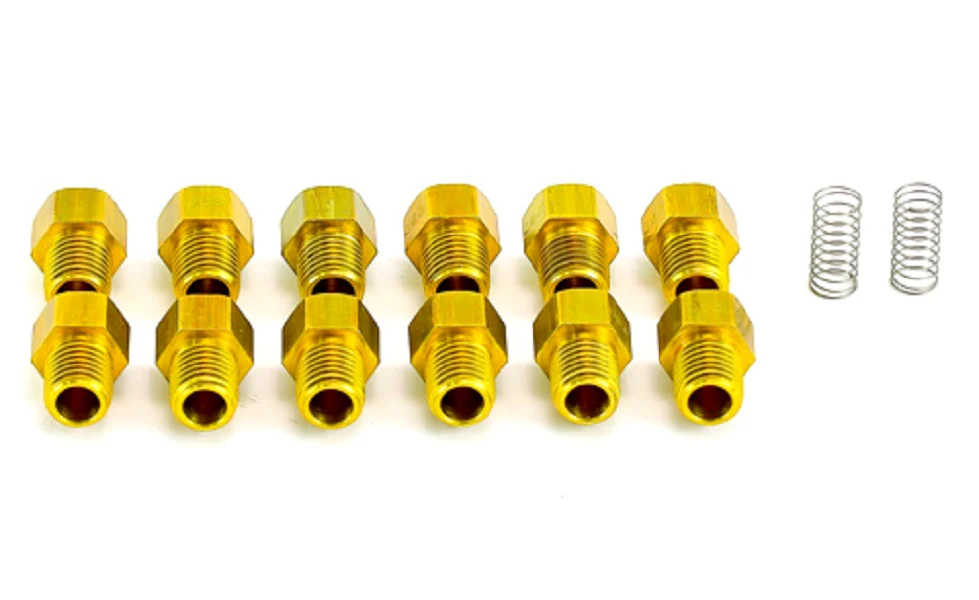

As a seasoned technician, you know that a precise LP to natural gas conversion is non-negotiable for maintaining equipment performance and safety. The Lennox 77W09 conversion kit (also identified as Lennox 606248-01) is the OEM-standard solution for transitioning high-efficiency 80% and 95% AFUE units from propane back to natural gas configurations. This comprehensive kit is engineered specifically for Lennox EL280, SL280, EL296, 95AF2, and ML296 series furnaces, ensuring that the manifold pressure and burner combustion align with factory specifications. Each kit includes twelve #063 burner orifices, precisely sized to handle the lower BTU density of natural gas compared to liquid propane, along with specialized White Rodgers and Resideo regulator springs to accurately calibrate the gas valve for natural gas inlet pressures.
Utilizing genuine Lennox replacement parts for this fuel type conversion prevents the common issues of over-firing or soot accumulation often seen with generic components. This HVAC gas conversion kit is rated for standard and mid-altitude installations ranging from 0 to 7500 feet. By swapping the propane orifices and adjusting the regulator tension with the included 23Y46 springs, you ensure the furnace operates at its intended input rate. Always verify the 506672-01 instruction sheet and apply the provided nameplate conversion stickers to maintain clear documentation for future service calls and code compliance.
- OEM Compatibility: Validated for use with Lennox SL280, EL280, EL296, and ML296 series gas furnaces.
- Complete Component Set: Includes twelve 0.063 orifice tips and dual-brand regulator springs (White Rodgers/Resideo) for broad gas valve support.
- Altitude Rated: Engineered for reliable performance at elevations from sea level up to 7500 ft.
- Precision Calibration: Replaces LPG conversion hardware to restore original natural gas manifold pressure and combustion efficiency.
Common Questions Regarding the Lennox 77W09 Kit
Which Lennox furnace models are compatible with the 77W09 conversion kit?
This kit is designed for Lennox EL280, SL280, EL296, 95AF2, and ML296 units. If you are working on a different series, consult the unit's nameplate to ensure this LP-Natural conversion matches your specific model's requirements.
What is the correct orifice size for this natural gas conversion?
The Lennox 77W09 includes #063 orifices, which are the standard technical requirement for these specific furnace lines when operating on natural gas.
Does this kit include springs for different gas valve manufacturers?
Yes, the package contains both White Rodgers regulator springs and Resideo (Honeywell) 23Y46 springs to ensure the technician can calibrate whichever valve is currently installed in the cabinet.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
