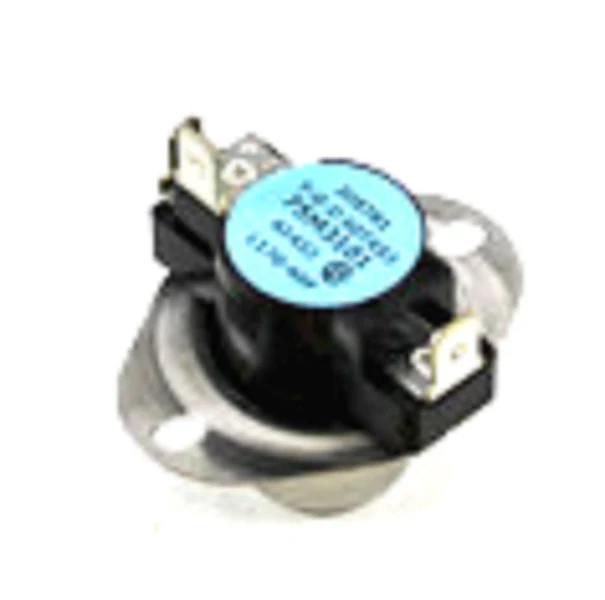

Lennox 75M31 Limit Control
The Lennox 75M31 Limit Control is a critical OEM replacement part designed to maintain safe thermal operating parameters within residential and commercial HVAC systems. As a primary high limit switch, this component utilizes a precise L170-40F calibration, meaning the normally closed contacts are engineered to open when the heat exchanger surface temperature reaches 170°F. Once the circuit is interrupted, the burner ignition or heating source is deactivated to prevent equipment overheating and potential thermal stress damage. The switch is designed to automatically reset when the temperature drops by the 40°F differential, ensuring the furnace blower or air handler returns to normal operation only after reaching a stable state.
For field technicians, the 75M31—also identified by part number 75M3101—provides a seamless fit for popular Lennox LGA series and EL296UH models. This blue label limit switch features a robust bimetallic sensing element that ensures long-term thermal responsiveness and reliability. Proper installation involves verifying the airflow velocity and temperature rise across the heat exchanger, as premature tripping often indicates restricted ductwork or a dirty evaporator coil rather than a faulty control. Replacing a legacy limit switch with this genuine Lennox 75M31 ensures safety circuit integrity and matches the original engineering specifications for overheating protection.
Key Benefits- Precise Thermal Calibration: L170-40F rating ensures the system shuts down exactly at 170°F to protect the heat exchanger.
- OEM Compatibility: Guaranteed to integrate with Lennox furnaces and packaged units without modification to the wiring diagram.
- Automatic Reset: Features a 40°F differential (resetting at 130°F) to restore HVAC performance once safe levels are reached.
- Reliable Construction: High-grade bimetallic strip design for consistent temperature monitoring in high-cycle environments.
What causes a Lennox 75M31 to trip frequently?
Frequent tripping is usually a symptom of restricted airflow. Check for a dirty air filter, blocked return air ducts, or a failing blower motor. If the temperature rise exceeds the manufacturer’s data plate rating, the limit control is performing its intended safety function.
How do I test the Lennox 75M31 limit switch?
Using a multimeter set to continuity or ohms, you should read 0.0 ohms across the terminals at room temperature. If the switch is open (infinite resistance) while the unit is cool, the internal contacts have failed and the part requires replacement.
Can this part be used in other furnace brands?
While the 75M31 is a Lennox OEM part, it is also compatible with Armstrong and AirEase equipment that specifies the same L170-40 thermal characteristics and mounting footprint.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
