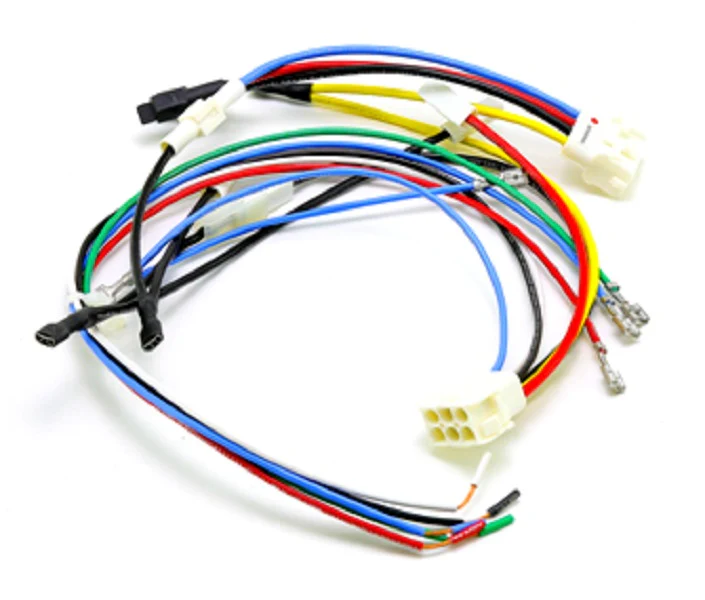

Lennox 74W17 Wiring Harness
The Lennox 74W17 Wiring Harness (model 104798-01) is an essential OEM HVAC electrical harness engineered for industrial-grade power distribution and signal transmission within Lennox heat pumps and air conditioning systems. Functioning as the "nervous system" of the unit, this factory-authorized wiring assembly facilitates reliable communication between the control board, compressor, and sensor arrays. It features precision-engineered connectors and high-quality conductors designed to withstand the thermal stresses of the cabinet while maintaining consistent voltage flow.
This genuine Lennox 74W17 harness is a direct replacement for the Lennox BCS3M series and is specifically utilized for wiring Lennox XC18 and MAC18 units. By ensuring robust electrical connectivity, this harness prevents intermittent operation and communication faults often caused by degraded insulation or loose terminals. Field technicians prefer this complete unit wire harness for its plug-and-play functionality, which reduces installation time during critical system upgrades or rapid maintenance calls.
Key Benefits for Technicians
- Precise OEM Fitment: Designed to Lennox original specifications for seamless integration into the 74W17 HVAC electrical circuit.
- Enhanced Conductivity: High-grade materials minimize resistance and ensure reliable power distribution across complex system components.
- Industrial-Grade Durability: Constructed with durable insulation and secure plug-in terminals to resist vibration and harsh operating environments.
- Improved System Control: Facilitates accurate signal transmission for ignition modules, stator coils, and blower motor controls.
- Streamlined Installation: Pre-configured leads allow for rapid maintenance, helping to minimize unit downtime during repairs.
Common Questions
Is the Lennox 74W17 compatible with all MAC series units?
The 74W17 wiring harness is a verified replacement for Lennox XC18 and MAC18 models; however, it is not compatible with MAC24 units. Technicians should cross-reference the Lennox 104798-01 part number with the specific unit serial number to ensure a correct match.
Can this harness be used for air conditioning compressor controls?
Yes, this 74W17 HVAC part is specifically designed to bridge the connection between compressor controls and the main ignition module, ensuring proper contact and electrical flow during start-up cycles.
Does this harness include all necessary connectors?
This is a complete wiring harness assembly featuring factory-authorized terminals, making it ready for immediate HVAC system electrical upgrade or repair without additional splicing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
