Lennox 74K96 Pressure Test Kit
The Lennox 74K96 Pressure Test Kit (also cataloged as LB-91053) is a precision-engineered diagnostic tool designed specifically for checking the integrity of Lennox Pulse furnaces. As any veteran tech knows, identifying hairline fractures or compromised seals in a heat exchanger leak test is critical for ensuring occupant safety and preventing carbon monoxide bypass. This genuine OEM Lennox 74K96 kit provides the necessary components to isolate and pressurize the heat exchanger and vent pipe assemblies, making it an essential addition to any furnace maintenance inventory.
The kit is compatible with G21Q3 and G21V5 series units and can be utilized across upflow, downflow, and horizontal configurations. It includes high-quality 1/2" NPT brass fittings, a range of test plugs from 1/2" to 2" (including Cherne and Shaw plugs), and a specialized pressure gauge for accurate furnace pressure testing. By establishing a reliable seal on the exhaust and intake ports, technicians can effectively detect pressure inconsistencies that indicate corrosion, blockages, or mechanical failure before they lead to costly system downtime.
Key Benefits
- Precise Diagnostics: Allows for the early identification of cracks, leaks, or corrosion within the heat exchanger assembly.
- Comprehensive Compatibility: Tailored for Pulse series furnaces, including G21 model variances across multiple mounting positions.
- High-Temperature Plugs: Includes durable test plugs rated up to 225°F (Shaw) and 170°F (Cherne) to maintain seal integrity during testing.
- Safety-First Maintenance: Crucial for verifying that the combustion chamber is fully sealed and not leaking hazardous gases into the airstream.

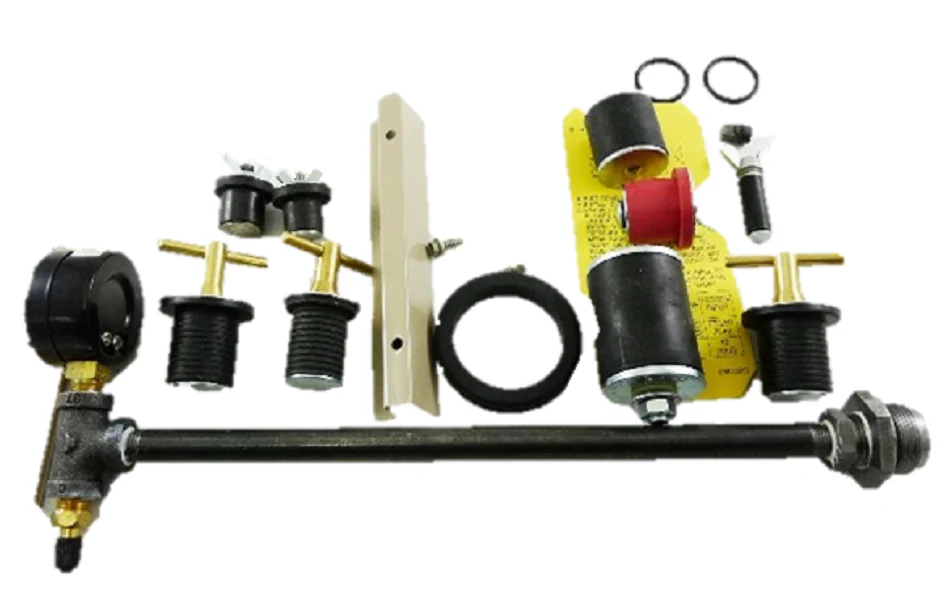

- Complete Setup: Comes with the gauge, patch plates, self-tapping screws, and various plug sizes (73K53, 73K54, 73K55, 73K56, 73K57) for a professional-grade field assessment.
Common Questions
Which Lennox models are compatible with the 74K96 kit?
This kit is primarily designed for Lennox Pulse gas furnaces, specifically the G21Q3 and G21V5 series. It is adaptable for 40,000 to 100,000 BTU models.
Does the furnace need to be completely cool before using this test kit?
Yes. To ensure accurate results, the unit must be cool. Residual heat from the exchanger can warm the air inside, leading to false pressure readings. Running the indoor blower on high speed with the burner off is the standard procedure before testing.
What is the purpose of the different plug sizes included?
The various plug sizes (ranging from 1/2" to 2") are required to seal different exhaust and air intake port diameters found across the supported Pulse furnace configurations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
