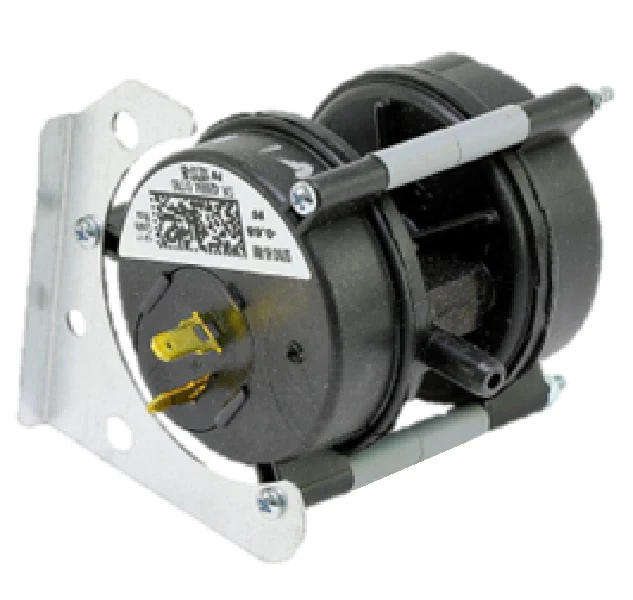

Lennox 69W57 Pressure Switch
The Lennox 69W57 Pressure Switch is a critical OEM replacement part engineered for high-efficiency, 2-stage HVAC systems. As a dual-stage sensing component, it accurately monitors the differential pressure within the inducer housing to ensure the combustion process is safe before allowing ignition. This Lennox 102737-05 pressure switch features precise factory-set parameters, with a high set point of 0.68" W.C. and a low set point of 0.30" W.C., maintaining tight operational tolerances required for variable-output furnaces.
Designed to withstand the demanding environments of modern heating equipment, this dual-stage pressure switch utilizes a durable diaphragm assembly and SPST-N.O. contacts rated for 5 Amps at 24 VAC. Integrating the Lennox 69W57 ensures your equipment operates at peak system efficiency while preventing unsafe furnace operation due to flue obstructions or inducer failure. This direct HVAC safety switch replacement eliminates the compatibility risks associated with universal parts, preserving the original airflow dynamics of the furnace.
Key Benefits for Contractors
- Precision Dual-Stage Monitoring: Specifically calibrated with 0.68" and 0.30" W.C. set points to support two-stage Lennox furnace operation.
- OEM Engineering: Ensures a seamless fit and exact electrical interface, reducing diagnostic time and call-backs.
- Enhanced Equipment Safety: Prevents burner ignition if the inducer motor fails to establish the required vacuum, protecting the heat exchanger.
- High-Durability Construction: Built with industrial-grade materials to resist moisture and heat-related fatigue common in condensing furnaces.
- Optimized Airflow Detection: Monitors differential air pressure to maintain consistent combustion safety and comfort levels.
Common Questions
What are the symptoms of a failing Lennox 69W57 pressure switch?
Common indicators include the inducer motor running without burner ignition, the system throwing a "pressure switch open" LED fault code, or the furnace short-cycling during the transition between heating stages.
Can I use a universal pressure switch instead of the 69W57?
It is not recommended. Two-stage systems require specific high and low vacuum set points (0.68" and 0.30" W.C.) that are difficult to match with universal components, often leading to improper staging or safety lockouts.
What causes a pressure switch error besides a faulty switch?
Technicians should always check for cracked or water-logged pressure tubing, blocked vent pipes, or debris in the inducer port before replacing the switch, as these external issues often trigger the safety circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
