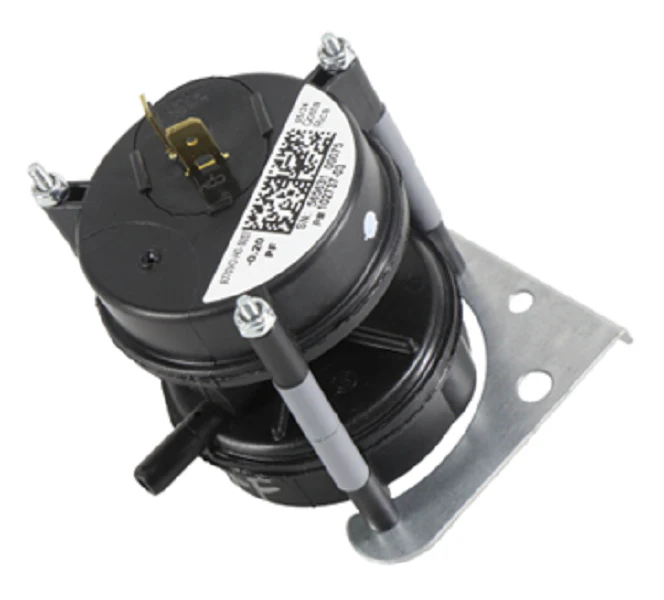

Lennox 69W55 Pressure Switch
The Lennox 69W55 is a critical two-stage pressure switch engineered for precision airflow monitoring in high-efficiency gas furnaces. Specifically designed as a Lennox OEM replacement part, this 102737-03 switch features dual set points to support staged heating operations: a high-pressure set point of 0.55" W.C. and a low-pressure set point of 0.20" W.C.. As a furnace safety switch, it functions by verifying that the inducer motor is creating sufficient static pressure to vent combustion gases safely before allowing the ignition sequence to proceed.
For service technicians, this dual stage pressure switch provides reliable differential pressure sensing across varied firing rates, ensuring the system maintains peak AFUE ratings. It is equipped with a SPST-N.O. contact configuration rated for 5 Amp resistive at 24 VAC, making it compatible with standard SureLight ignition control boards. Its robust housing is built to withstand the heat and vibration of Lennox gas furnaces, preventing common E223 error codes and nuisance trips caused by fluctuating inducer speeds or partial vent blockages.
Key Benefits- Precise Staging Control: Dual set points (0.20" / 0.55" W.C.) ensure accurate performance during both low and high-fire heating cycles.
- OEM Compatibility: Exact replacement for Lennox 102737-03, ensuring seamless mechanical fit and electrical alignment with factory wiring harnesses.
- Enhanced Safety: Prevents furnace ignition in the event of inadequate venting, protecting the secondary heat exchanger from condensation and soot buildup.
- Durable Construction: High-grade diaphragm materials resist fatigue from frequent cycling in two-stage HVAC systems.
What causes a Lennox pressure switch E223 error code?
This code typically indicates the low pressure switch is open while the inducer is energized. Common culprits include a cracked pressure switch hose, a restricted vent pipe, or a failing inducer motor that cannot reach the required 0.20" W.C. threshold.
Is the 69W55 compatible with all Lennox furnaces?
No, this is specifically calibrated for two-stage models requiring these exact set points. Always check the unit nameplate and technical documentation to verify that your furnace requires a 0.55/0.20 W.C. rating before installation.
Can I adjust the set points on this switch?
No. This OEM switch is factory-calibrated for safety. Attempting to adjust the set points can lead to unsafe combustion conditions or system failure. If the pressure readings do not match the switch requirements, the underlying airflow issue must be resolved.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
