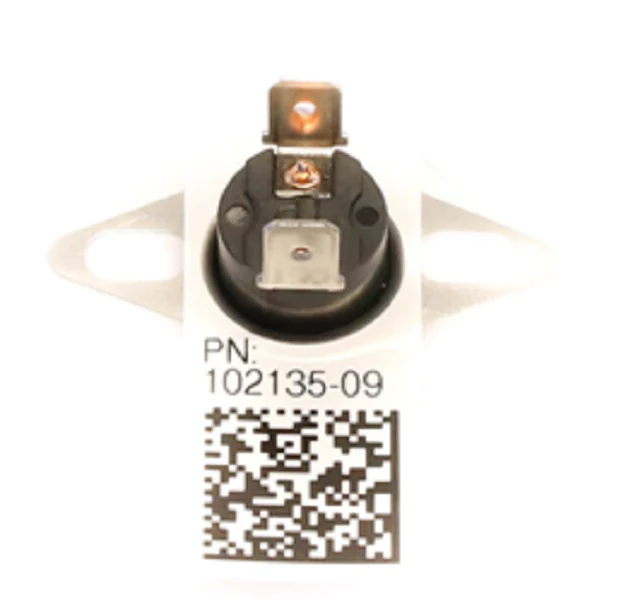

Lennox 69W42 Limit Switch
The Lennox 69W42 Limit Switch, also identified as the L220-30 Limit Switch, is a critical OEM safety component engineered for precise thermal regulation within Lennox, Armstrong, and Ducane furnaces. This furnace high limit switch features a 220°F opening threshold to interrupt the electrical circuit immediately upon detecting an over-temperature condition, effectively preventing heat exchanger damage and ensuring operational safety. With an automatic reset at 190°F, this disc-style limit switch provides reliable HVAC temperature protection by managing thermal cycles without manual intervention. Professionals utilizing this Lennox 69W42 replacement part benefit from a 15A at 120VAC electrical rating and a high-durability SPDT contact configuration, ensuring compatibility with a wide range of residential heating systems. Replacing a fouled or drifting Lennox 102135-09 control with this genuine OEM HVAC limit switch is the standard protocol for resolving "limit-tripped" error codes and restoring system efficiency in high-demand environments.
Key Benefits:- Enhanced Safety: Calibrated to trigger at 220°F (L220) to prevent furnace overheating and potential fire hazards.
- OEM Compatibility: Direct Lennox 69W42 replacement for part numbers 102135-09 and LB-102135-09 across Allied Air brands.
- Automatic Reset: Features a 30°F differential (L220-30) that closes the circuit at 190°F for seamless system recovery.
- Rugged Construction: Built with silver contacts and a disc-type design to withstand continuous thermal fluctuations in the plenum.
- What causes a Lennox 69W42 to trip frequently? Repetitive tripping is typically caused by restricted airflow, such as a clogged HVAC air filter, a failing blower motor, or internal blockages in the heat exchanger.
- How do I test the L220-30 limit switch? Using a multimeter set to continuity, the switch should show a closed circuit at room temperature; if the circuit is open while cool, the switch is defective and requires immediate replacement.
- Can I bypass this switch for testing? Bypassing a safety limit is never recommended for permanent operation. It should only be done by a licensed technician for momentary diagnostics to confirm the switch's failure state.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
