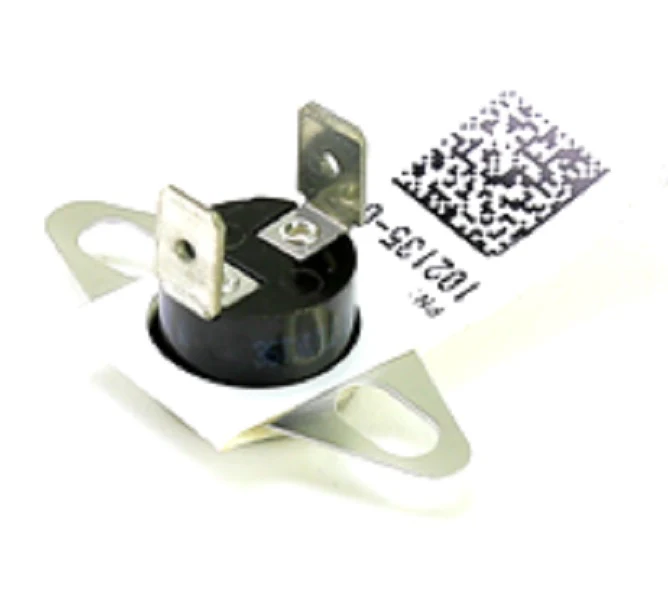

Lennox 69W37 Fan Control
The Lennox 69W37 Fan Control, also identified as a L165-30F limit control, is a critical safety and operational component designed for precise thermal regulation in Lennox furnaces and air handling units. This fixed temperature limit switch features a 165-degree Fahrenheit open and 130-degree Fahrenheit close calibration, ensuring the heat exchanger remains within safe operating parameters while maintaining consistent blower cycles. Engineered for high-cycle reliability, the 69W37 furnace part serves as a direct OEM replacement across various Lennox, Armstrong, and Ducane equipment lines. Its snap-disc design provides rapid response to temperature fluctuations, preventing equipment overheating and potential component failure. Technicians should verify the manual reset or automatic functionality requirements and physical mounting footprints before installation. When troubleshooting a furnace blower not turning off or a system tripping on high limit, this high limit safety switch is a primary diagnostic point for restoring system efficiency and safety protocols.
- Precision Thermal Calibration: Factory-set at 165°F (Open) / 130°F (Close) for accurate burn-out protection and blower control.
- OEM Compatibility: Replaces common part numbers including Lennox 69W37 and 100412-01, ensuring a drop-in fit for contractor ease.
- Robust Electrical Ratings: Designed to handle typical furnace control circuit voltages with high-grade contact materials to resist pitting and carbon buildup.
- Blower Timing Accuracy: Facilitates correct fan-off delays to maximize latent heat recovery from the heat exchanger after the burner cycle ends.
Common Questions
Is the Lennox 69W37 a manual or automatic reset limit?
This specific Lennox limit control is an automatic reset switch, meaning it will re-close the circuit once the sensed temperature drops to the 130°F reset point.
What causes a Lennox 69W37 to trip frequently?
Frequent tripping usually indicates restricted airflow due to a dirty filter, blocked secondary heat exchanger, or an undersized duct system, forcing the limit switch to protect the system from overheating.
Can I use this as a universal furnace limit?
While the thermal specs (L165-30) are standard, the mounting flange and sensor depth are specific to Lennox-style housings; always verify the A-Dimension and mounting hole spacing for proper fitment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
