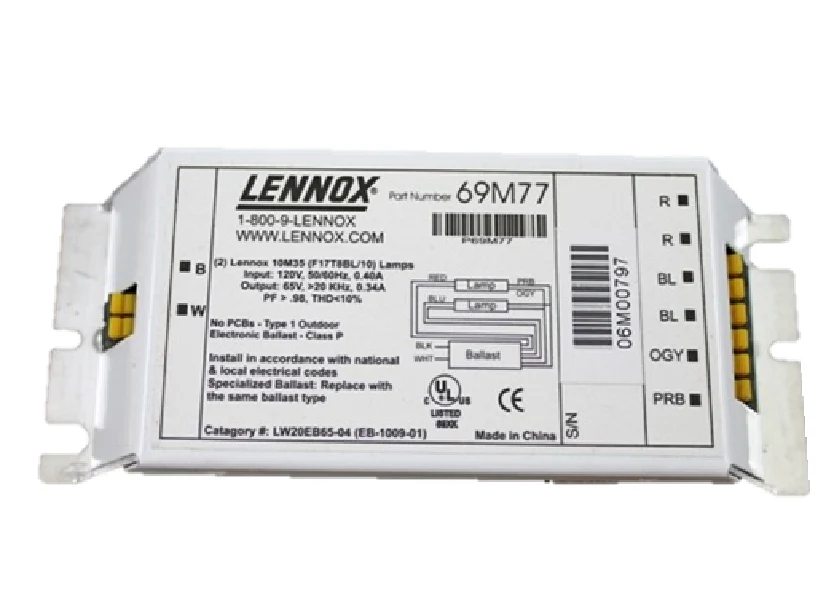

Lennox 69M77 Electronic Ballast
For contractors servicing Healthy Climate PureAir air purification systems, the Lennox 69M77 Electronic Ballast (model 69M7701) is the direct OEM replacement for maintaining UVC lamp integrity. Operating on a 120V 50/60Hz input with a 65V 20KHZ output, this high-frequency ballast is engineered to provide a rapid start sequence that eliminates flickering and stabilizes current flow. By precisely regulating voltage to the germicidal light, it prevents premature filament degradation and ensures the PCO20-28 or PCO16-28 systems maintain peak microbial reduction performance.
This Lennox replacement ballast is designed for the high-duty cycles of residential and commercial HVAC air handlers. Its robust internal circuitry manages the thermal load typical of enclosed duct environments, preventing the common "red-tip" lamp failure associated with inconsistent power delivery. When replacing a failed 69M77, technicians should verify the interlock door switch and wiring harnesses for signs of UV degradation to ensure the full efficiency of the pureair purification system.
Key Benefits- OEM Compatibility: Specifically calibrated for Lennox Healthy Climate germicidal lamps and PureAir PCO series.
- Rapid Start Technology: Provides instantaneous lamp ignition, reducing stress on electrodes and extending component life.
- Stable Output: Delivers a consistent 65V 20KHZ signal to maintain UVC intensity for effective bio-aerosol control.
- Direct Fit: Replaces 69M7701 without the need for mounting modifications in the original ballast bracket.
Why is my UV lamp flickering after installing a new ballast?
Flickering often indicates a loose connection in the lamp socket or a failing bulb. If the 69M77 ballast is new, check the dual quick connect adapters for a secure fit and ensure the lamp has not reached its end-of-life cycle.
Can I use this ballast with 460V or 575V systems?
The Lennox 69M77 is a 120V component. For high-voltage rooftop units, a separate step-down transformer (like the T49) must be used to provide the correct 120V input to the ballast.
What are the signs that the ballast needs replacement?
Common indicators include a completely dark UV lamp despite a new bulb, a lamp that only illuminates near the ends (turning red), or a tripped interlock circuit caused by an internal short in the ballast housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $66.74
-65%$66.74
$23.36Lennox 69M77 Electronic Ballast
For contractors servicing Healthy Climate PureAir air purification systems, the Lennox 69M77 Electronic Ballast (model 69M7701) is the direct OEM replacement for maintaining UVC lamp integrity. Operating on a 120V 50/60Hz input with a 65V 20KHZ output, this high-frequency ballast is engineered to provide a rapid start sequence that eliminates flickering and stabilizes current flow. By precisely regulating voltage to the germicidal light, it prevents premature filament degradation and ensures the PCO20-28 or PCO16-28 systems maintain peak microbial reduction performance.
This Lennox replacement ballast is designed for the high-duty cycles of residential and commercial HVAC air handlers. Its robust internal circuitry manages the thermal load typical of enclosed duct environments, preventing the common "red-tip" lamp failure associated with inconsistent power delivery. When replacing a failed 69M77, technicians should verify the interlock door switch and wiring harnesses for signs of UV degradation to ensure the full efficiency of the pureair purification system.
Key Benefits- OEM Compatibility: Specifically calibrated for Lennox Healthy Climate germicidal lamps and PureAir PCO series.
- Rapid Start Technology: Provides instantaneous lamp ignition, reducing stress on electrodes and extending component life.
- Stable Output: Delivers a consistent 65V 20KHZ signal to maintain UVC intensity for effective bio-aerosol control.
- Direct Fit: Replaces 69M7701 without the need for mounting modifications in the original ballast bracket.
Why is my UV lamp flickering after installing a new ballast?
Flickering often indicates a loose connection in the lamp socket or a failing bulb. If the 69M77 ballast is new, check the dual quick connect adapters for a secure fit and ensure the lamp has not reached its end-of-life cycle.
Can I use this ballast with 460V or 575V systems?
The Lennox 69M77 is a 120V component. For high-voltage rooftop units, a separate step-down transformer (like the T49) must be used to provide the correct 120V input to the ballast.
What are the signs that the ballast needs replacement?
Common indicators include a completely dark UV lamp despite a new bulb, a lamp that only illuminates near the ends (turning red), or a tripped interlock circuit caused by an internal short in the ballast housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
