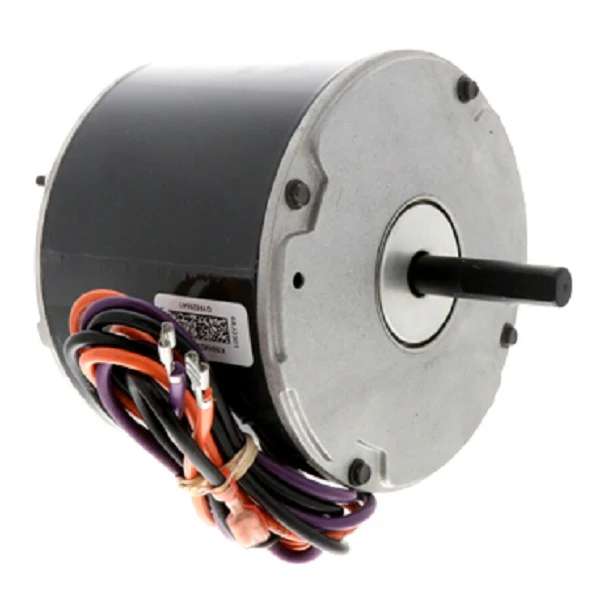

Lennox 68J23 Motor
As a seasoned technician, you know that finding a reliable OEM Lennox 68J23 motor is critical for restoring system pressure and airflow without the headaches of "universal" fitment issues. This 460V 1-phase condenser fan motor is a PSC motor specifically engineered for heavy-duty commercial and residential HVAC applications. Operating at 1075 RPM with a 1/6 HP output, this unit provides the steady torque required for consistent heat dissipation across the condenser coils. Featuring a 48Y frame (5-5/8 inch diameter) and a 2-inch shaft, it allows for a precise fit in popular Lennox, Armstrong, and Ducane units.
The Lennox 68J23 (also known as 68J2301) is designed for CCWLE rotation and is thermally protected to prevent winding burnout during high-ambient operations. It requires a 5 MFD at 370V capacitor for proper startup and run efficiency. When you are out in the field, this direct replacement condenser motor ensures that you maintain OEM specifications for amperage draw and motor cooling efficiency, keeping your client's system operational in demanding environments.
Key Benefits- Direct OEM Compatibility: Replaces Lennox 68J2301 and fits specific models like the HP29, HS29, and HPXA12 series without modification.
- Industrial-Grade Construction: Features a 48Y frame and rolled steel housing for superior heat management and vibration resistance.
- Ready for High-Voltage Systems: Specifically rated for 460V 60Hz single-phase power supplies, common in commercial HVAC footprints.
- Reliable Protection: Integrated thermal overload protection and insulation class B rating for extended service life in outdoor conditions.
What capacitor is required for the Lennox 68J23?
This motor requires a 5.0 MFD / 370 VAC capacitor. We strongly recommend replacing the capacitor whenever a new motor is installed to prevent premature failure from out-of-tolerance electrical components.
What is the rotation direction of this motor?
The 68J23 features a Counter-Clockwise Lead End (CCWLE) rotation. Always verify the fan blade pitch and rotation requirements of your specific condenser unit before installation.
Can this motor replace a 230V fan motor?
No. This is a 460V single-phase motor. Attempting to use this on a 230V circuit will result in failure to start, while applying 460V to a 230V-rated system is hazardous. Always verify the data plate on the old motor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
