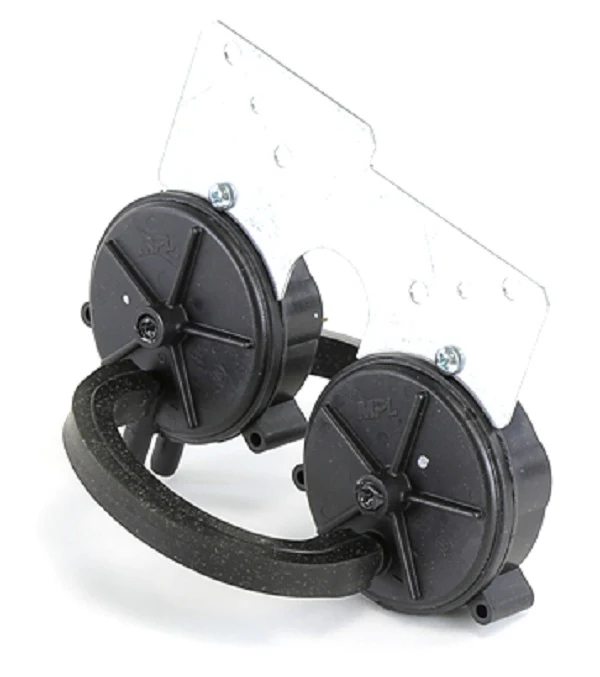

Lennox 64W86 Pressure Switch
The Lennox 64W86 Pressure Switch is a critical safety component engineered specifically for two-stage gas furnaces. This factory-authorized replacement operates as an air pressure sensor, monitoring differential pressure to ensure proper inducer motor performance and venting before allowing the ignition sequence. Designed for high-efficiency systems, it features a dual-level calibration with a set point high of 1.20" W.C. and a set point low of 0.90" W.C., facilitating precise modulation between heating stages. Integrating this Lennox 2-stage pressure switch ensures the furnace control board receives accurate pneumatic signals, preventing burner operation under unsafe airflow conditions. Built to withstand the thermal cycling and moisture typical of modern condensing furnaces, the 64W86 provides the robust reliability required for professional HVAC maintenance. Cross-reference this OEM furnace pressure switch with part number 101126-09 to confirm HVAC pressure switch compatibility with your specific Lennox model during your next service call.
Key Benefits- Precise Two-Stage Modulation: Specifically calibrated at 1.20" and 0.90" W.C. to support high and low fire furnace operations.
- Enhanced System Safety: Prevents ignition if the venting system or combustion air supply is compromised.
- OEM Construction: Manufactured to original Lennox specifications for seamless internal mounting and electrical terminal alignment.
- Professional Grade Durability: Engineered with a resilient diaphragm to maintain accuracy across thousands of heating cycles.
How do I troubleshoot a 64W86 pressure switch? Check for moisture in the sensing lines, ensure the inducer motor is reaching full RPM, and verify the heat exchanger is not restricted. Use a calibrated manometer to confirm the 1.20" and 0.90" W.C. trip points match the switch specifications.
Can I use this as a replacement for other Lennox part numbers? This unit is a direct replacement for Lennox 101126-09. Always verify the WC (Water Column) ratings on your existing switch, as installing a switch with incorrect set points can lead to nuisance tripping or unsafe operation.
Why is my two-stage furnace stuck in low fire? A failing Lennox 64W86 may fail to close the "High" circuit (1.20" W.C.), preventing the furnace from transitioning to its secondary heating stage even when the thermostat calls for it.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
