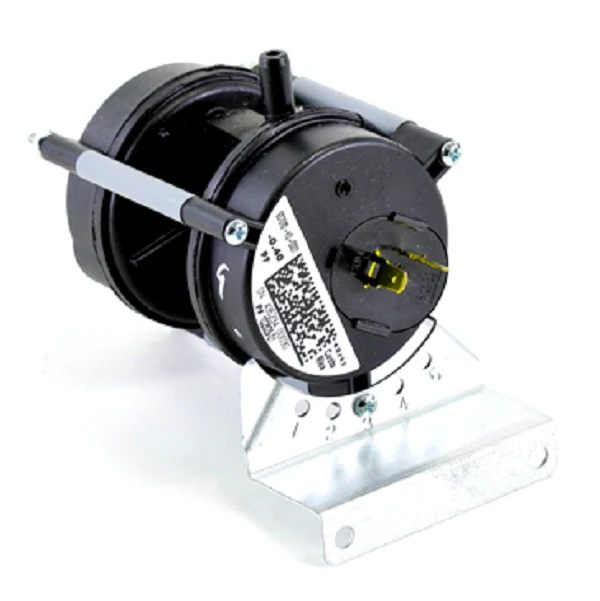

Lennox 63W40 Pressure Switch
The Lennox 63W40 Pressure Switch is a critical OEM replacement component for two-stage furnaces and heat pumps, including the G60DF and G60UH series. Designed to ensure safe combustion cycles, this dual pressure switch features factory-calibrated set points of 0.20" WC for low-stage operation and 0.40" WC for high-stage performance. As a veteran-grade HVAC pressure switch, it monitors the negative pressure generated by the inducer motor, providing the essential "prove" signal to the control board before ignition sequence. Precise airflow monitoring and combustion safety are paramount; the 63W40 prevents hazardous operation by interlocking the gas valve if flue obstructions or inducer failure are detected. Built for high-cycle reliability in residential and commercial Lennox heating systems, this genuine Lennox part (also identified as 102529-01) features standard 1/4-inch tube connections and durable SPST contacts rated for 5 Amps at 24 VAC, ensuring a seamless drop-in fit for professional furnace repair.
Key Benefits- Dual-Stage Precision: Accurate 0.20/.40 pressure settings ensure optimized staging and maximum system efficiency.
- OEM Compatibility: This genuine Lennox 63W40 is a direct substitute for part 102529-01, fitting common Allied and Armstrong units.
- Enhanced Safety: Real-time negative pressure monitoring prevents the furnace from firing during vent blockages or inducer motor malfunctions.
- Rugged Construction: Engineered to withstand the thermal stress and moisture levels common in high-efficiency condensing furnaces.
What causes a "Pressure Switch Open" error on a Lennox furnace?
This is frequently caused by a blocked flue vent, a failing inducer motor, or moisture buildup in the pressure switch tubing. Always check for hose cracks or debris before replacing the switch.
Can I use a single-stage switch to replace the 63W40?
No. The 63W40 is specifically designed for two-stage systems. Using a single-stage switch will bypass safety protocols and prevent the furnace from shifting into high-fire mode correctly.
How do I verify if my 63W40 is faulty?
A technician should use a manometer to measure the actual inches of water column produced by the inducer and a multimeter to ensure the switch contacts close specifically at the 0.20" and 0.40" thresholds.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
