Lennox 63W26 Ignition Control

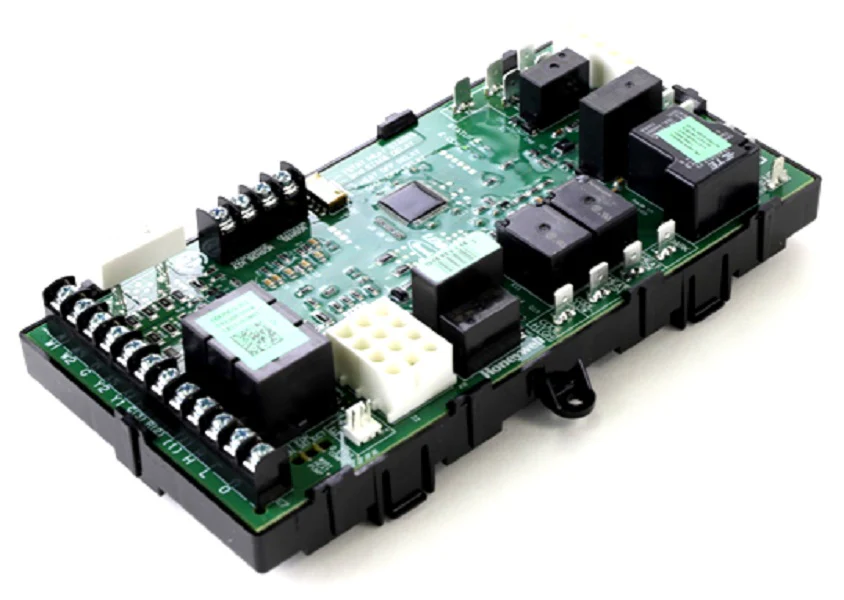

As a direct replacement for your high-efficiency gas furnace, the Lennox 63W26 Ignition Control (Honeywell S9220E1018/U) provides critical management for 2-stage ignition systems. This PSC integrated furnace control is engineered for residential natural gas or liquid propane applications, ensuring precise timing for the hot surface ignitor (HSI) and flame sensing sequences. High-voltage 120V line power and 24V low-voltage circuits are managed via a robust microprocessor, facilitating accurate control over the induced draft blower and indoor circulator. For versatility in the field, this board supports both single-stage and two-stage thermostats through configurable DIP switches, including adjustable second-stage heat recognition delays of 10 or 15 minutes. The 63W26 control board effectively replaces legacy Lennox part numbers 23W25, 100869-01, and 100869-02, restoring reliability to systems like the Lennox G60UH and G61MP series. Technicians can rely on the dual-LED interface for rapid HVAC troubleshooting, providing instant feedback on system status and fault codes to minimize downtime during service calls.
Key Benefits for Technicians- Broad Compatibility: Genuine OEM Lennox replacement part designed to fit models including G60UH, G61MP, and SL280 series.
- Configurable Performance: Features adjustable DIP switches for heat fan off delay (60 to 180 seconds) and thermostat mode selection.
- Advanced Diagnostics: Equipped with diagnostic LED indicators to simplify the identification of ignition failures or limit switch trips.
- Precise Sequencing: Manages 5-second prepurge and 20-second HSI warmup to ensure safe and efficient burner ignition.
- Can I use a single-stage thermostat with this 2-stage board? Yes. By adjusting DIP switch 1 to the 'ON' position, the Lennox 63W26 will automatically step up to high fire after a timed delay.
- What do the flashing LEDs indicate? The red LED provides specific fault codes such as "Watchguard" or "Flame Failure," while the green LED indicates EnviraCOM communication traffic.
- Does this board control the blower motor? Yes, it manages PSC blower motor speeds for heating, cooling, and continuous fan modes, including specific "Cool Fan Off" delays.
- What is the trial for ignition duration? This control features a 4-second trial for ignition followed by up to four retries before entering a soft lockout mode.
