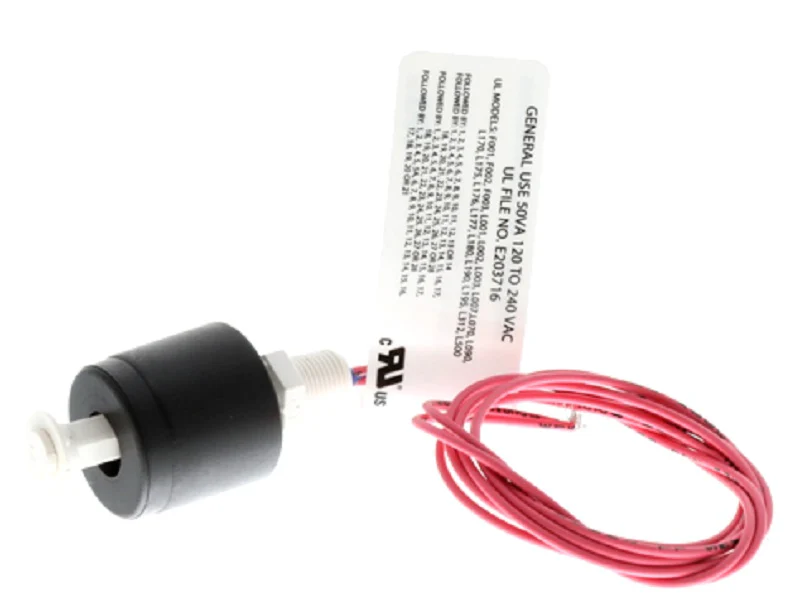

Lennox 60M13 Float Switch
The Lennox 60M13 Float Switch is a high-performance vertical float switch designed for critical fluid level monitoring in demanding industrial and HVAC condensate management applications. Built to withstand extreme operational environments, this OEM Lennox part features a robust polysulfone and Buna-N construction, ensuring chemical resistance and mechanical integrity in high-temperature HVAC systems. With a 220°F temperature rating and a 150 PSIG pressure rating, the 60M13 is engineered for seamless integration into Lennox commercial rooftop units (including KG/KC/KH 024-300 series) to prevent drain pan overflow and subsequent equipment damage. This normally closed liquid level sensor operates at 25VA (up to 240V), providing reliable circuit interruption to de-energize compressors when condensate levels exceed safe limits. For technicians, the 18-inch lead wires and standard vertical mounting configuration allow for efficient HVAC float switch replacement, restoring system safety and maintaining 24VAC control circuit functionality without the need for field modifications.
Key Benefits
- High-Temperature Durability: Rated for up to 220 degrees Fahrenheit, making it suitable for process control and high-ambient industrial environments.
- Heavy-Duty Pressure Capacity: Engineered to maintain a seal and operational accuracy under 150 PSIG of pressure.
- Vertical Precision: The normally closed (N.C.) vertical orientation ensures immediate response to rising liquid levels to protect building interiors from flooding.
- Broad Compatibility: Specifically designed as a drop-in Lennox 60M1301 replacement for 024-150 and 156-300 tonnage commercial units.
Common Questions
How do I test if the Lennox 60M13 is functioning correctly?
Using a multimeter set to the continuity or ohms scale, disconnect the leads and measure resistance. As a normally closed switch, you should see near zero ohms (continuity) when the float is down. Resistance should go to infinity (open circuit) when the float is manually raised.
Is this float switch compatible with both plastic and stainless steel drain pans?
Yes, when utilized with the appropriate Lennox mounting bracket, the 60M13 is compatible with various pan materials used in Lennox KG/KC/KH models. Ensure the float has clear vertical travel to avoid mechanical binding.
Can this switch be used in 240V control circuits?
The 60M13 is rated for a voltage of 25 VA and can be used in 240 Vac applications, provided the load does not exceed its volt-ampere rating.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
