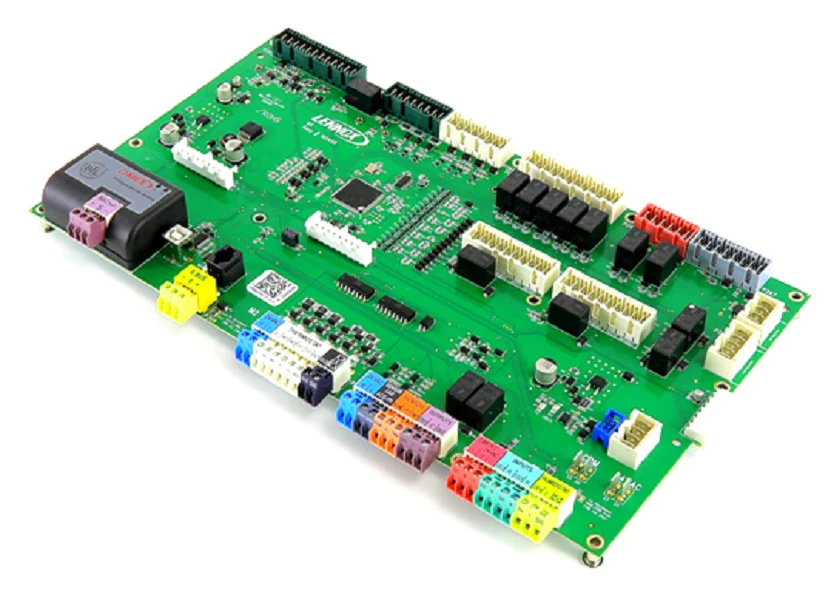

Lennox 59W47 Control Board
Upgrade or restore your rooftop system with the Lennox 59W47 Control Board, also identified as the Lennox 102630-01 M2 Unit Controller. This genuine OEM assembly is the central intelligence for heavy-duty commercial packaged units, including the LCH210H4-02, LCH300S4-02, and LCH420H4-01 series. As a high-performance HVAC circuit board replacement, it coordinates critical startup and shutdown sequences for compressors, blower motors, and economizers to maintain precise climate control. The Prodigy M2 Unit Controller features a 7-segment display and pushbutton interface, allowing technicians to perform manual commissioning, unit code assignment, and real-time sensor monitoring. Reliable communication between the thermostat and inverter is critical; this Lennox HVAC control board ensures the thermal expansion and ignition sequences remain within factory parameters.
Key Benefits- OEM Compatibility: Direct replacement for part numbers 59W47 and 102630-01, ensuring seamless fitment in M2 Unit Controller applications.
- Integrated Diagnostics: The 7-segment display provides immediate error code feedback, simplifying troubleshooting for ignition or sensor failures.
- System Coordination: Manages complex rooftop unit (RTU) operations, including multi-stage cooling and heating, and fan speed modulation.
- Auto-Commissioning: On iComfort-enabled systems, this board supports automatic model and serial number transfer for faster setup.
- How do I resolve a "Not Selected" error on the display? This usually indicates that the unit selection code has not been manually assigned. Use the pushbutton to cycle through codes and set the correct capacity and motor RPM for your specific model.
- Does this board support iComfort Wi-Fi thermostats? Yes, the 59W47 is fully compatible with iComfort communication protocols, allowing for "Compatible Device Found" auto-configuration.
- What if the board does not spark? First, verify the W1 and R terminals are receiving 24VAC. If the LED is fast-flashing but the relay does not close, inspect the rollout and limit switches before determining if the board is non-functional.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
