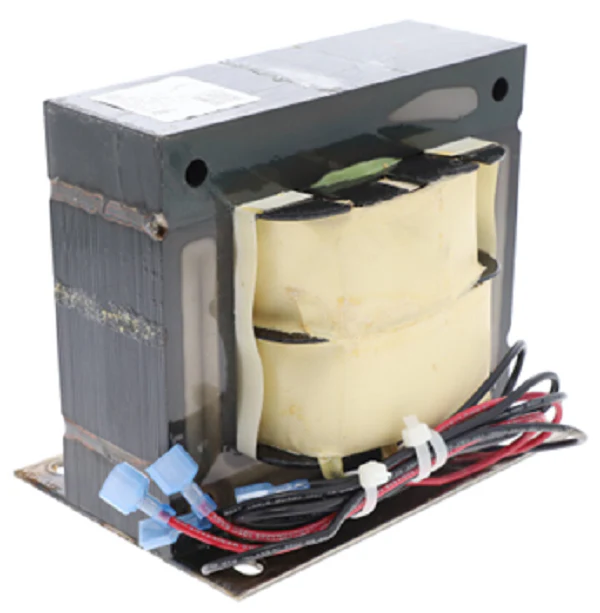

Lennox 59W42 Transformer
The Lennox 59W42 Transformer, also identified by part number 102002-01, is a heavy-duty step-down transformer engineered for industrial HVAC applications requiring high-capacity power conversion. With a 460V primary to 230V secondary configuration, this unit is built to manage large electrical loads, boasting a 2.9 KVA (2900 VA) rating. This 60 Hz transformer provides critical voltage regulation for commercial air handlers and rooftop units, ensuring that sensitive control circuits and auxiliary components receive stable power from high-line inputs. Weighing 21.8 lbs, its robust foot mount design and lead-wire connections facilitate secure installation in high-vibration environments. For technicians replacing 102002-01 components, the Lennox 59W42 ensures exact electrical matching to maintain system integrity and prevent core saturation or thermal overheating during peak demand cycles.
Technical Benefits for Contractors:- High VA Capacity: The 2.9 KVA rating provides ample overhead for large-scale control systems and auxiliary HVAC components.
- Precise Voltage Stepping: Efficiently converts 460 VAC line voltage to 230 VAC for compatible motor starters and control boards.
- Industrial Build Quality: Robust construction designed to withstand the thermal stressors found in commercial mechanical rooms.
- Standard Foot Mount: Simplified installation profile allows for direct replacement in existing Lennox chassis and cabinets.
What are the primary applications for the Lennox 102002-01?
This transformer is primarily used in commercial HVAC equipment where 460V three-phase power is present but secondary 230V power is required for specific control circuits or peripheral hardware.
Can the 59W42 be used in 50 Hz applications?
No, this model is specifically rated for 60 Hz operation. Using it on a 50 Hz system may lead to increased core temperatures and potential failure.
What is the physical footprint of this 2.9 KVA transformer?
The unit features dimensions of approximately 4.38" in depth and 6.38" in width, fitting standard mounting layouts for heavy-duty Lennox power assemblies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
