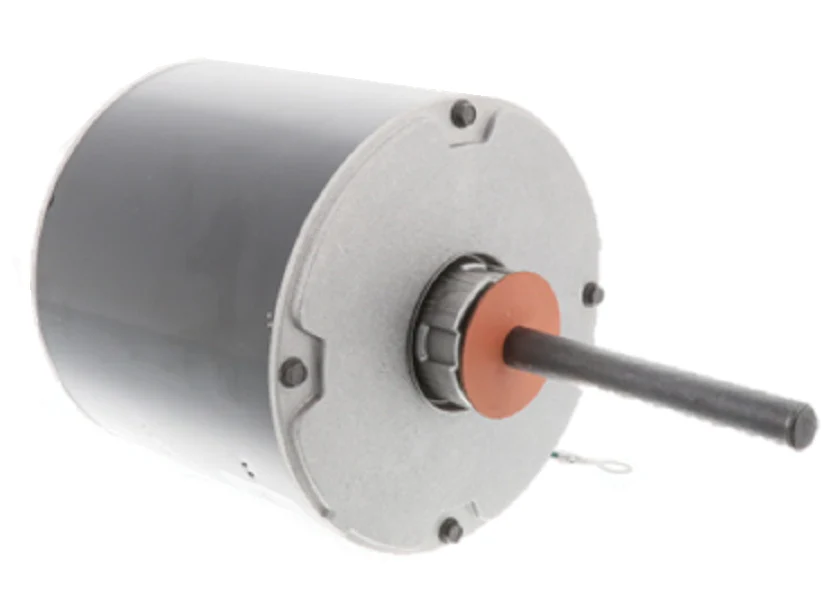

Lennox 59W29 Motor
The Lennox 59W29 is a high-efficiency condenser fan motor engineered for direct OEM replacement in Lennox, Allied Air, Armstrong, and Ducane condensing units. Operating at 825 RPM, this 1/4 HP HVAC replacement motor is designed to maintain critical airflow across the condenser coils while minimizing acoustic output. Built as a Permanent Split Capacitor (PSC) motor, it operates on a 208-230V single-phase power supply at 60Hz. The Lennox 59W29 motor features a 48-frame diameter and a 1/2-inch diameter shaft, ensuring a precise fit for standard fan blade assemblies. This direct drive fan motor utilizes a Totally Enclosed Air Over (TEAO) design to protect internal windings from environmental debris and moisture, making it a reliable solution for demanding outdoor environments. Technicians should note the CCW rotation (lead end) and the requirement for a 10µF 370VAC capacitor to ensure optimal torque and thermal performance during startup and continuous operation.
- OEM Compatibility: Precision-matched for Lennox part number 100640-03 to ensure seamless mechanical and electrical integration.
- Quiet Operation: The 825 RPM low-speed design reduces vibration and decibel levels compared to higher-speed alternatives.
- Industrial Build: Features sleeve bearings and a TEAO enclosure for enhanced resistance to outdoor elements and extended service life.
- Standardized Mounting: Stud mounting and a 4.59-inch shaft length facilitate quick installation in residential and light commercial units.
Common Questions
What capacitor is required for the Lennox 59W29?
This motor requires a 10 MFD 370V capacitor for proper operation. It is a best practice to replace the capacitor whenever installing a new condenser motor to prevent premature failure.
Is the 59W29 motor reversible?
This specific model is a single-speed motor with a fixed Counter-Clockwise (CCW) rotation. Always verify the rotation of your existing fan blade before installation.
Can this motor replace a 1075 RPM motor?
No, you must match the RPM of the original motor. Switching from a 1075 RPM to an 825 RPM motor will significantly reduce airflow, leading to high head pressure and potential compressor damage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
