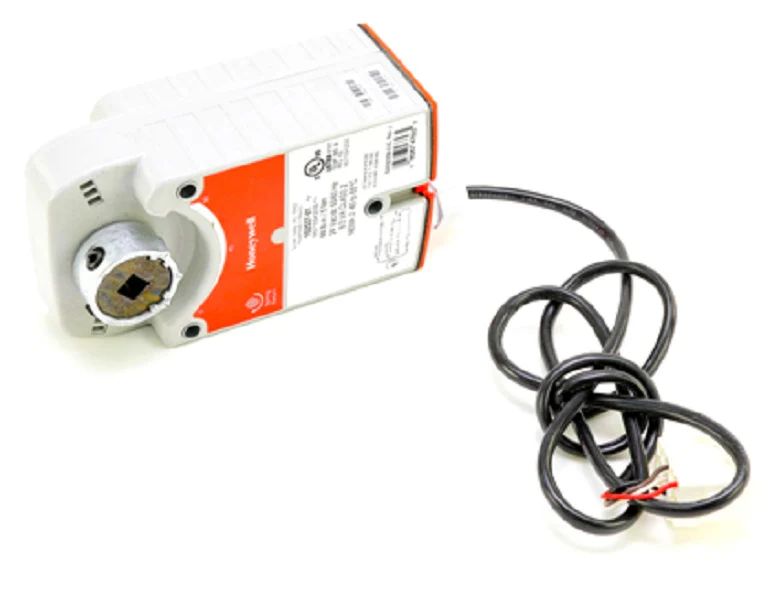

Lennox 58W61 Damper Motor
The Lennox 58W61 Damper Motor is a critical OEM replacement part designed for precision airflow modulation within high-performance HVAC systems. Engineering for reliability, this 24V damper actuator operates on a 2-10VDC control signal, providing synchronous positioning to maintain static pressure and zone-specific cooling or heating requirements. As a direct-drive unit, it serves as the primary component for driving dampers in both residential and commercial Lennox air handlers, ensuring that ventilation remains balanced across the ductwork.
For service technicians, the 58W61 offers a seamless retrofit for the Lennox 102537-01, featuring a robust motor assembly capable of handling a 44# torque rating (often referenced as 44 PSI in specific air-driven applications). Its CCW (Counter-Clockwise) rotation and variable speed compatibility make it essential for VAV (Variable Air Volume) diffusers and energy-efficient economizer setups. When diagnosing short-cycling or improper zone temperature control, verify the 2-10VDC signal from the controller; if the motor fails to respond to input voltage or exhibits resistance in the gear train, a direct swap with this genuine Lennox part is the standard protocol to restore system efficiency.
Key Benefits for Technicians:
- Precision Modulation: Utilizes a 2-10VDC signal for exact damper positioning, optimizing HVAC airflow control.
- High Torque Output: Rated at 44# to handle larger damper blades without risk of stalling or premature motor failure.
- Direct OEM Compatibility: Replaces Lennox 102537-01 and 58W61 models, ensuring correct wiring harness alignment and mounting footprints.
- System Efficiency: Regulates plenum air distribution to prevent static pressure imbalances that lead to blower motor strain.
Common Technical Questions:
What are the symptoms of a failing Lennox 58W61?
Common indicators include "no-heat" calls where the damper remains closed, excessive noise during modulation transitions, or a thermostat error code indicating loss of communication with the zone damper motor. Ensure the 24VAC power supply is stable before condemning the actuator.
Can I use this motor for 3-position control?
This specific model is engineered for proportional control via a 2-10VDC signal. While it can be driven to min/max positions, it is optimized for systems requiring variable positioning rather than simple open/closed functionality.
Is the rotation reversible on this unit?
The 58W61 is typically configured for CCW operation. Always verify the damper blade's required rotation direction and the linkages before final installation to prevent airflow blockage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
